Bluetooth Color Control Path Light Module

CALED2BT

Description

Any Color You Want...White When You Don't!

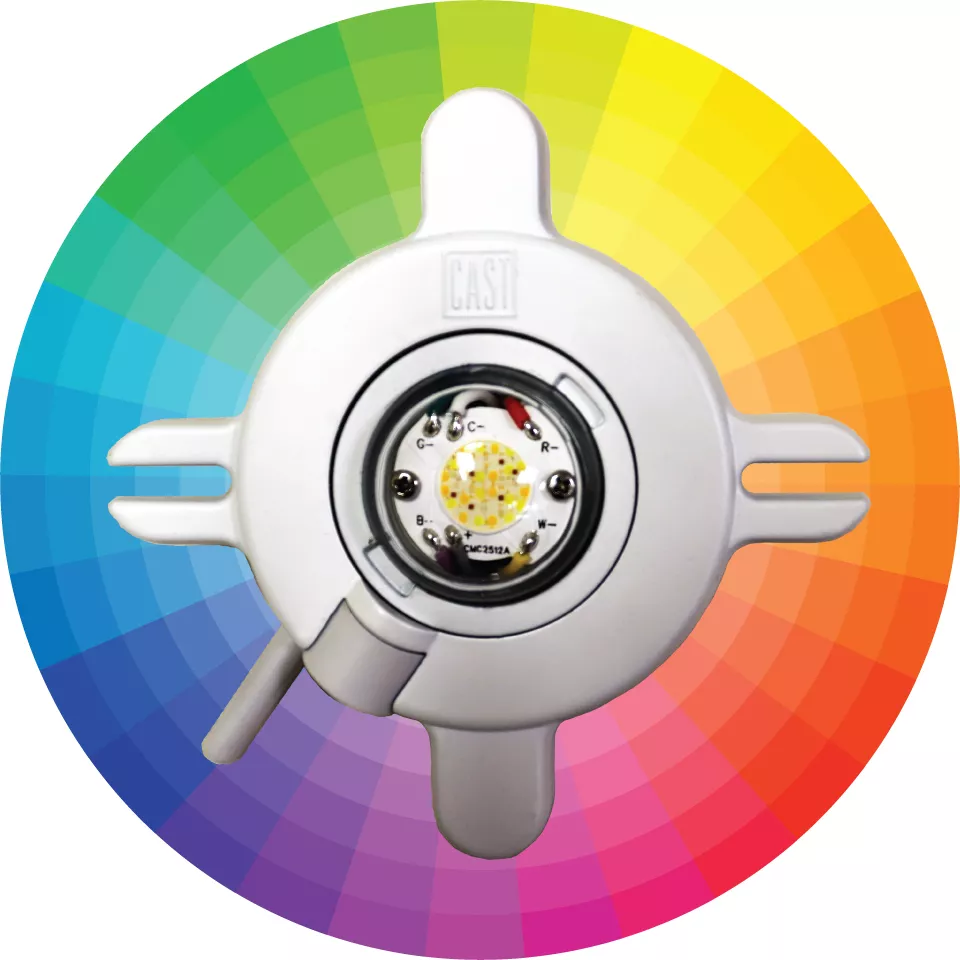

Make your path light part of your Bluetooth Color Control System for the ultimate glare-free lighting experience! This integrated LED module easily replaces the S8 wedge-base lamp in this fixture to give you either white light or unlimited color/dimming options when using our Bluetooth Color Control App.

  • Body: Module for use in CAST Landscape Classic Path/Area Lights (CNOU2CB, CCL1CB, CSR1CB, CNO1CB, CCH1CB, CCH13CB, CCH2CB, CMU1CB, CMU13CB, CMU2CB)
  • Lens:  Borosilicate
  • Warranty: Ten year
  • Certifications:  Complies with requirement of UL-1838 and CAN/SCS-C22.2 No. 250.7.  IP65 rated for harsh environments.

Features

Type: Integrated LED

Wattage: 5Watt

Voltage Range:  12V - 15V AC/DC

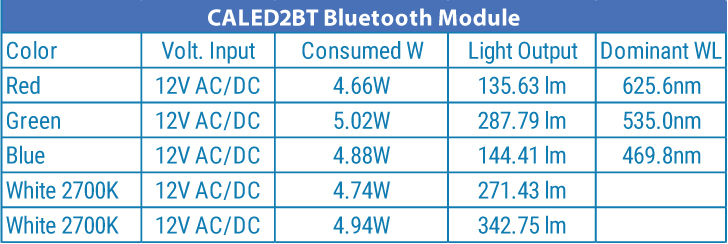

Lumen Output:  135lm to 342lm

Beam Spread:  NA

CRI76.8 to 83.2 CRI

CCT Options: 2700K to 6000k with full-color spectrum

RGB Options: Unlimited color wheel options. Preset Red, Green, Blue, White.

Dimming: Dimming option from 5% to 100% for every color choice

Scenes:  Fixture grouping, individual scene control, preset scenes, color cycling

Requirements: Unit requires the use of a Bluetooth Range Extender (SBLBTR)

Models
  • CALED2BT
