CAST Classic Deck Light

CDL1CB, CDL1LED1

Description

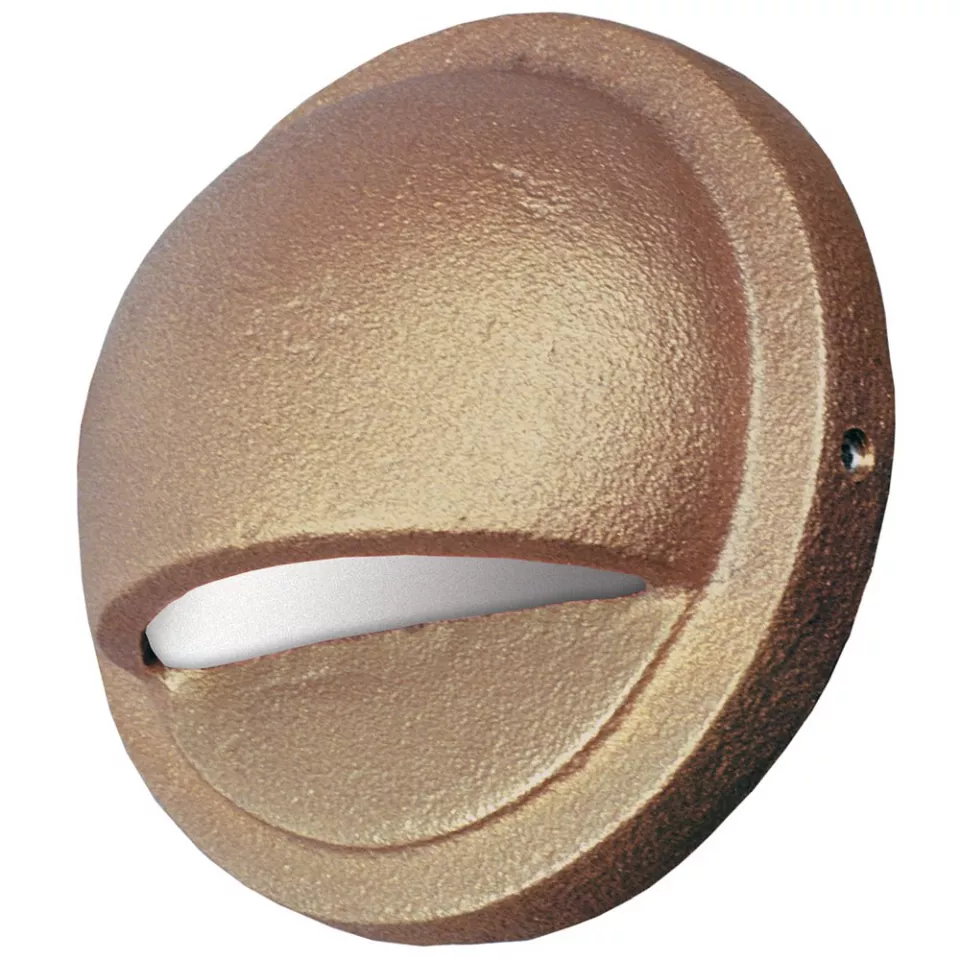

This compact and attractive solid bronze deck light is durable and reliable for wall and post mounting.

This fixture is available: CDL1CB can be used with a halogen or LED drop-in lamp, CDL1LED1 is an integrated LED fixture that is made with 51% USA content.

Applications

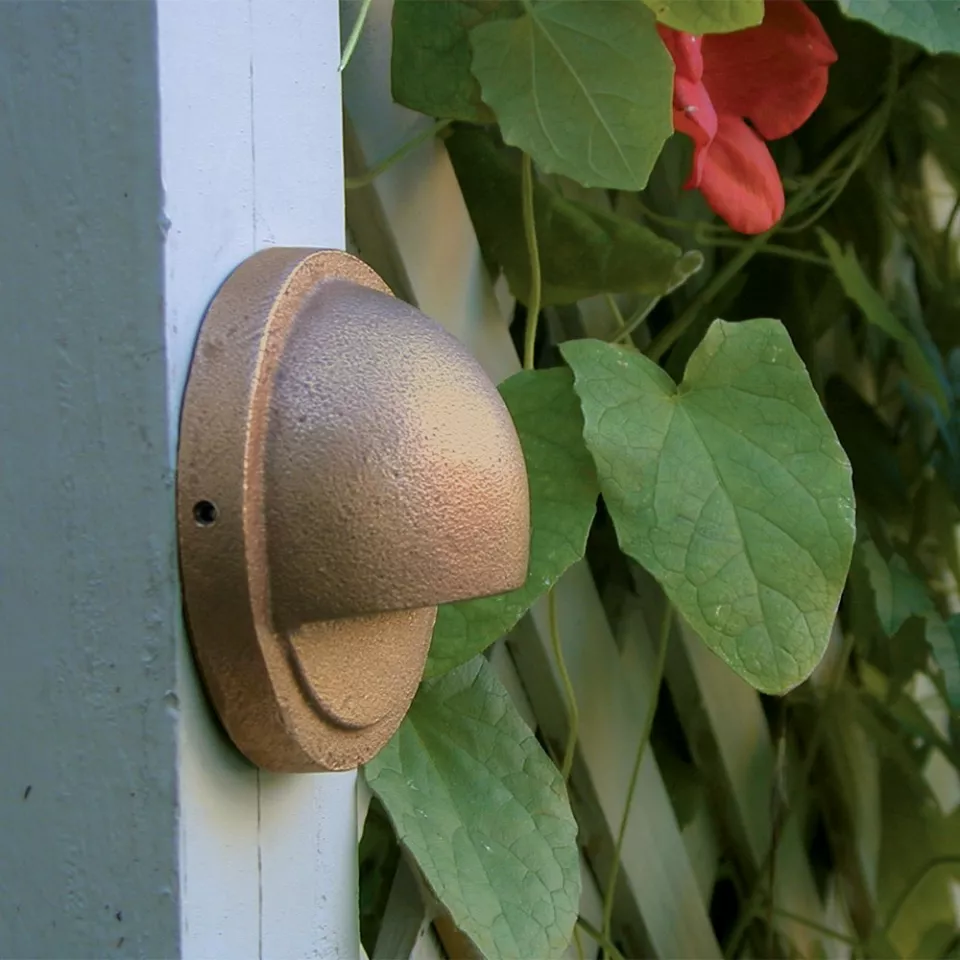

The Classic Deck Light is suitable for downlighting when mounted on retaining walls, structure surfaces, posts, and pilings.

Features

  • Solid Sand Cast Bronze Construction
  • Glare-free illumination
  • Pre-wired:
    • CDL1CB - includes a 25' 16/2 tin-coated No-Ox® marine grade wire
    • CDL1LED1 - with 5’ 18/2 tin-coated No-Ox® marine grade wire
  • High-temp socket
  • Spider-Splice® ready
Models
  • CAST Classic Deck Light (CDL1CB)
  • CAST Classic Integrated LED Deck Light (CDL1LED1)
Quick Info
  • CAST Lighting magnetic toroidal core Transformers Journeymen 75, 150, 300, 600, & 900 Watt and Master Series 900 & 1200 Watt
  • CAST No-OX Tin-Coated Marine-Grade Wire
    Available in #8/2, #10/2, #12/2, #14/2, & #16/2 gauges.
  • Astronomical Digital & Mechanical Timers
  • Photo Cells
  • Seamless non-insulated crimp connections & Heat shrink for wire connections

Specifications

  • Dimensions and Weight: 3.75” diameter x 1.75” height”
  • Weight: 2 lbs.
  • Listing: All CAST Lights conform to: UL Std's 1838 & 8750; CE; Certified to CAN/CSA Std's C22.2 No. 250.0 & C22.2 No. 250.13. Suitable for wet locations. FCC Class B Conducted and Radiated. RoHS.
  • Construction:
    • Body: Solid Sand-Cast Bronze secured with (2) 303 stainless steel Hex Head screws. Includes (2) stainless steel mounting screws.
  • Packaging: Packed 5/box; fully assembled

Specifications for CDL1CB:

  • Lamp Specifications:

    *Includes 2.5W, 9-15 volt operating range, T5 LED lamp (SL921T5200L).

    *Halogen Option: 12V, 18W T-5 Xelogen-18W max. (CWB921X).

  • Wiring: Tin-coated No-Ox marine-grade wiring (inside fixture and external 25 ft. 16/2 lead); socket wire crimped and soldered to lead wire using tin solder and tin crimps protected with waterproof shrink tubing and fiberglass sleeve.
  • Special Warning Instructions: Since the SCB socket is grounded to the fixture body, care should be taken to maintain correct orientation of paired wire leads. The ridged side of the wire pair should be connected at the Spider Splice to the ridged side of the home run pair. The ridged side of the home run pair should be wired to one of the common terminal blocks at the transformer.

LED Specifications for CDL1LED1:

  • LED Light Source: 1 CREE LED, Life (L70) 60,500 hrs., Color Temp. 2759°K, CRI 81
  • Input Voltage: 10 to 24V, AC or DC
  • Power: .27 Amps, 2.82 Watts, Power Factor .88, Volt Amps 3.2
  • Lumen output-fixture: 49 lm
  • Center Beam Candela: 29
  • Lead Wire: 5’ tin coated #18/2 NO-OX marine grade wire
  • FCC compliant for EMI interference



Documents

Parts for this Product

Source Lighting Co. T5 Wedge Base LED Mini Lamp

Source Lighting Co. T5 Wedge Base LED Mini Lamp
SL921T5200L

View Product
CAST Single Contact Bayonet Socket (for old style deck light)

CAST Single Contact Bayonet Socket (for old style deck light)
XCESSCB1

View Product
CAST 1/2 Moon Glass Lens for CDL1CB Deck Light

CAST 1/2 Moon Glass Lens for CDL1CB Deck Light
XCGDL

View Product
CAST Hex Head Set Screw for CDL1CB Classic Deck Light

CAST Hex Head Set Screw for CDL1CB Classic Deck Light
XCHS1032316

View Product
CAST LED Light Engine for Deck Light (CDL1LED1)

CAST LED Light Engine for Deck Light (CDL1LED1)
CDL1MODLED

View Product

Related Products

CAST Journeymen® Series Transformers

Journeymen® Series Transformers
CJ300SSMT, CJ600SSMT, CJ900SSMT, E1CJ600SSMT

View Product
CAST No-Ox® Wire

CAST No-Ox® Wire
CLW82500, CLW142500, CLW162500, CLW12250, CLW102500, CLW102250, CLW122500

View Product
