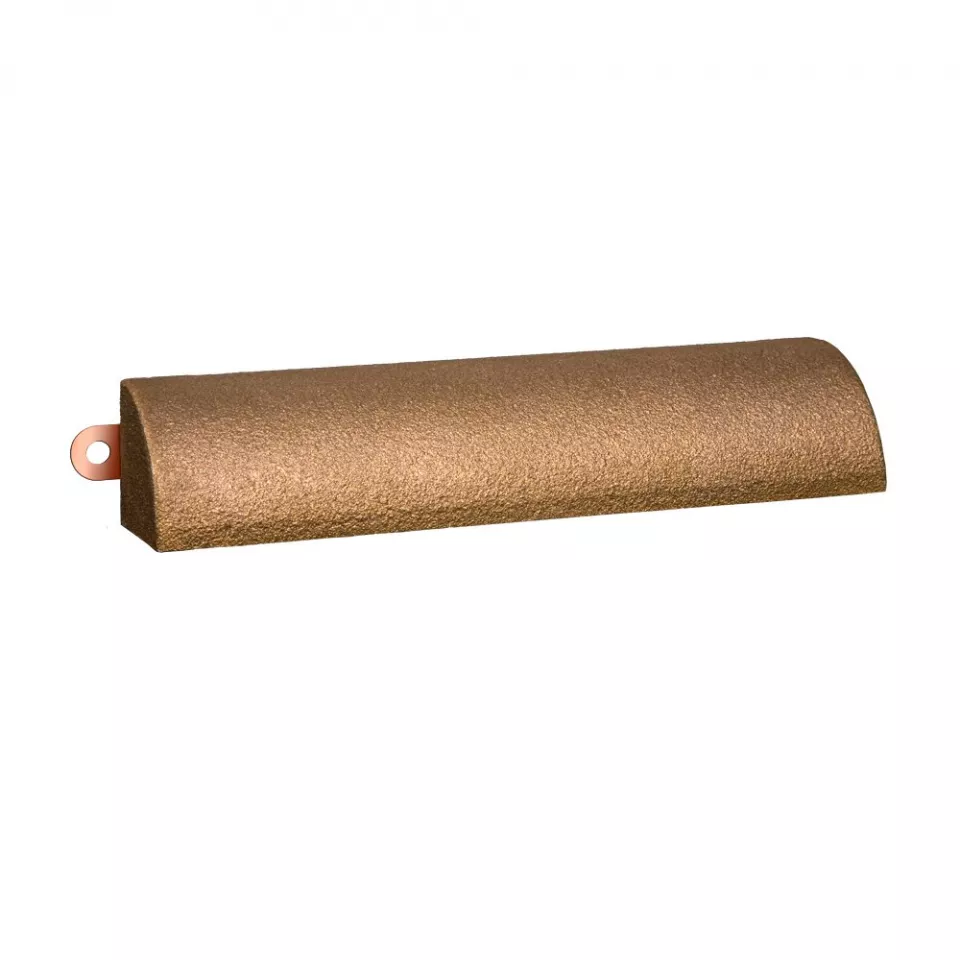

CAST Classic Engineered Wall/Capstone Light - Surface Mount

CEWL6CB, CEWL6LED1

Attractive wall light constructed of solid bronze with copper tabs for surface mounting. A great reflected light source with No Hot Spots!

Integrated LED version hosts a fully integrated LED source with constant current driver and excellent thermal management. LED board is rated for 60,500 hrs. with minimal lumen degradation.

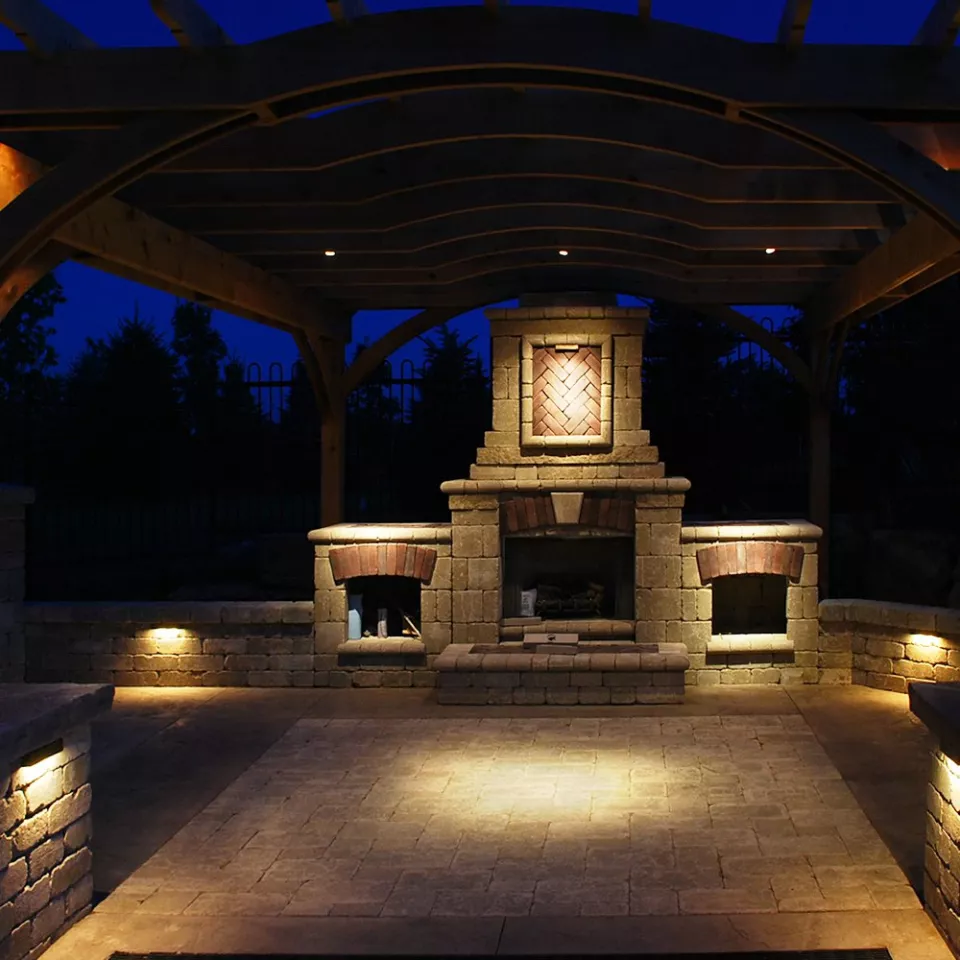

Suitable for applications where a flush-mounted fixture is required. Ideal for wall, stairwells, and railings

Solid bronze construction, highly corrosion resistant, naturally weathers to a beautiful patina.

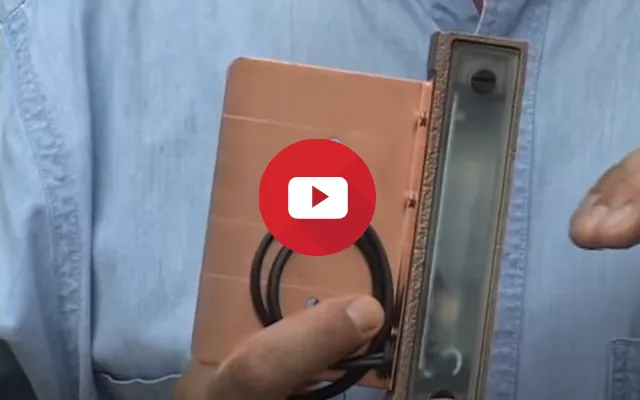

Solid copper bracket allows for quick installation in a variety of locations. Bracket is thin enough so it does not interfere with retaining wall construction.
Lamp housing with internal reflector enclosed within frosted glass lens for a wide even light distribution (no hot spots).
Lamp protected from sprinklers and rain.
Pre-wired with 25’ #18-2 tin-coated No-Ox® marine grade wire.

CAST Engineered Wall Light (CEWL6CB)
CAST Integrated LED Engineered Wall Light (CEWL6LED1)

CAST Lighting magnetic toroidal core Transformers: Journeymen 75, 150, 300, 600, & 900 Watt and Master Series 900 & 1200 Watt

CAST No-OX Tin-Coated Marine-Grade Wire Available in #8/2, #10/2, #12/2, #14/2, & #16/2 gauges.

Astronomical Digital & Mechanical Timers
Photo Cells
Seamless non-insulated crimp connections & Heat shrink for wire connections

Dimensions and Weight: Body: 6.0” wide x 1.1” tall x 1.4” deep
Lamp Specifications for CEWL6CB:

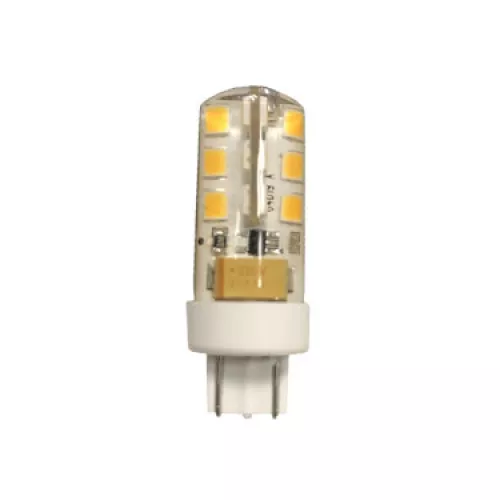

*2.5W, 9-15 volt operating range, T5 LED lamp (SL921T5200L) included.

*Halogen Option: 12V 10W, T-3 wedge-base xelogen lamp - 18W max. (CWB1210X).

LED specifications for CEWL6LED1:
- LED Light Source: 2 Cree LED’s, Life(L70) 60,500 hrs. Color Temp: 2704°K CRI: 81
- Input voltage: 10 to 24V, AC or DC
- Power: 2.5 watts, .24 amps, Power Factor: .88 Volt Amps: 2.84
- Lumen output: 76.06 lm
- Center Beam Candela: 38
- FCC compliant for EMI interference
Listing: All CAST Lights conform to: UL Std's 1838 & 8750; CE; Certified to CAN/CSA Std's C22.2 No. 250.0 & C22.2 No. 250.13. Suitable for wet locations. FCC Class B Conducted and Radiated. RoHS.
Construction:
- Body: Solid Sand-Cast Bronze
- Bracket: Solid copper with two mounting holes

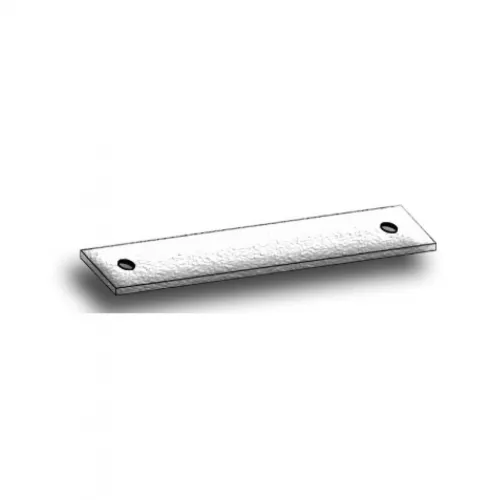

- Internal Reflector: mirrored aluminum reflector
- Lens: Frosted soda line glass

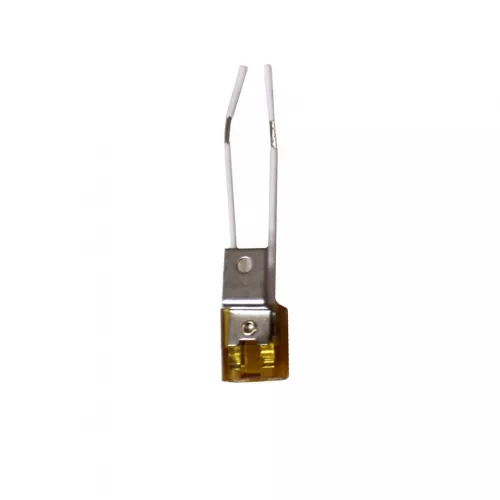

- Socket Assembly: High-temperature wedge-base socket
- Wiring: Tin-coated No-Ox marine-grade wiring (inside fixture and external 25 ft. #18-2 lead); socket wire crimped and soldered to lead wire using tin solder and tin crimps protected with waterproof shrink tubing and fiberglass sleeve.
Packaging:
- Packed 12/box; fully assembled.
