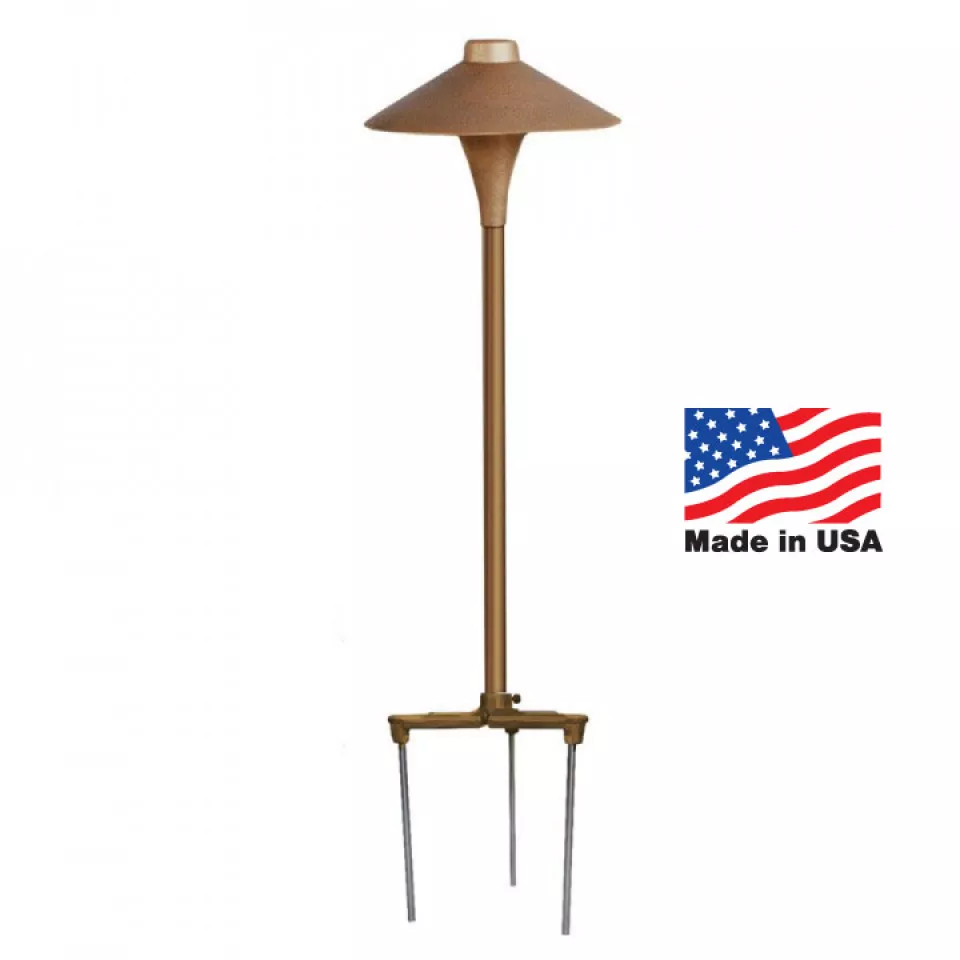

CAST Classic Large China Hat Area/Path Light

CCH2CB

Description

This rugged solid bronze and copper path/area light provides a soft glare free illumination.

Made with 76% USA content!

LAMP NOT INCLUDED: You can use the S8 Wedge Base Lamp - SL3156250L or for an outstanding glare free light source, the LED Path Light Module - CALED2

Applications

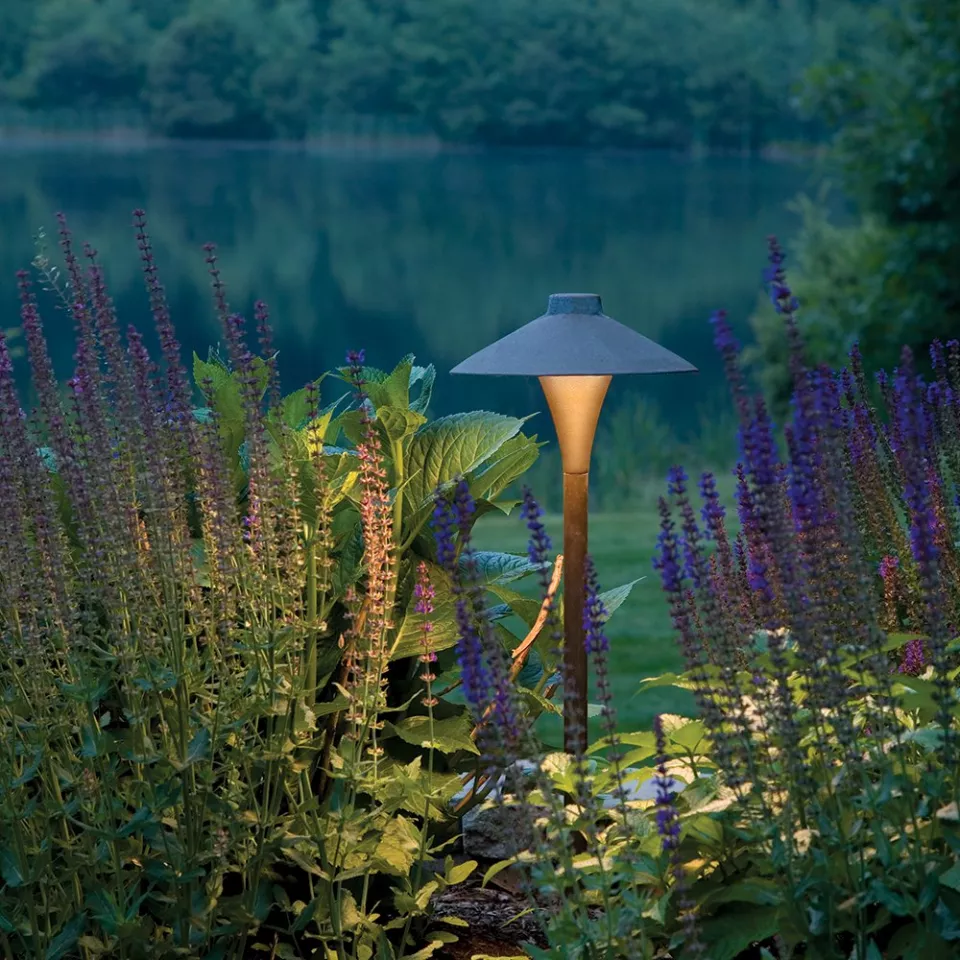

Suitable for lighting walkways, planting beds and other areas.

Features

  • Easily converted to LED by adding the CALED2 Module
  • Glare free light source
  • Solid bronze hat and vase
  • Fixture provided with large SOLD BRONZE talon mount stake with three 1/4" x 7" stainless steel spikes (CTSL1CB)
  • Heavy-gauge copper stem
  • Optional sprinkler shield
  • Pre-wired with 25’ 16/2 tin-coated No-Ox® marine grade wire
  • High-temp socket
  • Spider Splice® ready
Models
  • CCH2CB
Quick Info
  • CAST Lighting magnetic toroidal core Transformers
    Both Journey Men 75, 150, 300, 600, & 900 Watt and Master Series 900 & 1200 Watt
  • CAST No-OX Tin-Coated Marine-Grade Wire
    Available in #8/2, #10/2, #12/2, #14/2, & #16/2 gauges.
  • Astronomical Digital & Mechanical Timers
  • Photo Cells
  • Seamless non-insulated crimp connections & Heat shrink for wire connections

Specifications

  • Dimensions and Weight: Stem, Body, and Hat: 25" tall x 9” wide
    • Stake 8.5”
    • Weight: 11 lbs.
  • Lamp Specifications: Lamp: 12V S8 Wedge Base (35W max.) (not included).
  • Listing: All CAST Lights conform to: UL Std's 1838 & 8750; CE; Certified to CAN/CSA Std's C22.2 No. 250.0 & C22.2 No. 250.13. Suitable for wet locations. FCC Class B Conducted and Radiated. RoHS.
  • Construction:
    • Hat and Body: Solid Sand-Cast Bronze
    • Talon Stake: Large SOLD BRONZE talon mount stake with three 1/4" x 7" stainless steel spikes (CTSL1CB)
    • Stem: Heavy duty copper (unthreaded end to secure in stake with set screw) (0.115” wall thickness)
    • Socket Assembly: High-temperature composite S8 socket rated to 220 degrees Celsius.
    • Wiring: Tin-coated No-Ox marine-grade wiring (inside fixture and external 25 ft. 16/2 lead); socket wire crimped and soldered to lead wire using tin solder and tin crimps protected with waterproof shrink tubing and fiberglass sleeve.
  • Packaging:
    • Hat packed 3/box.
    • Stem assemblies (CLAA) 3/box.

Documents

Videos

Parts for this Product

CAST LED Path Light Retrofit Module

CAST LED Path Light Retrofit Module
CALED2, CALED2A

View Product
Source Lighting Co. S8 Wedge Base LED Mini Lamp

Source Lighting Co. S8 Wedge Base LED Mini Lamp
SL3156250L

View Product

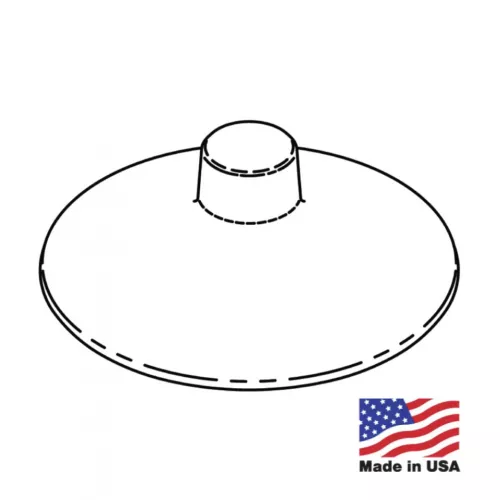

CAST Top for Large China Hat Path Light (CCH2CB)
