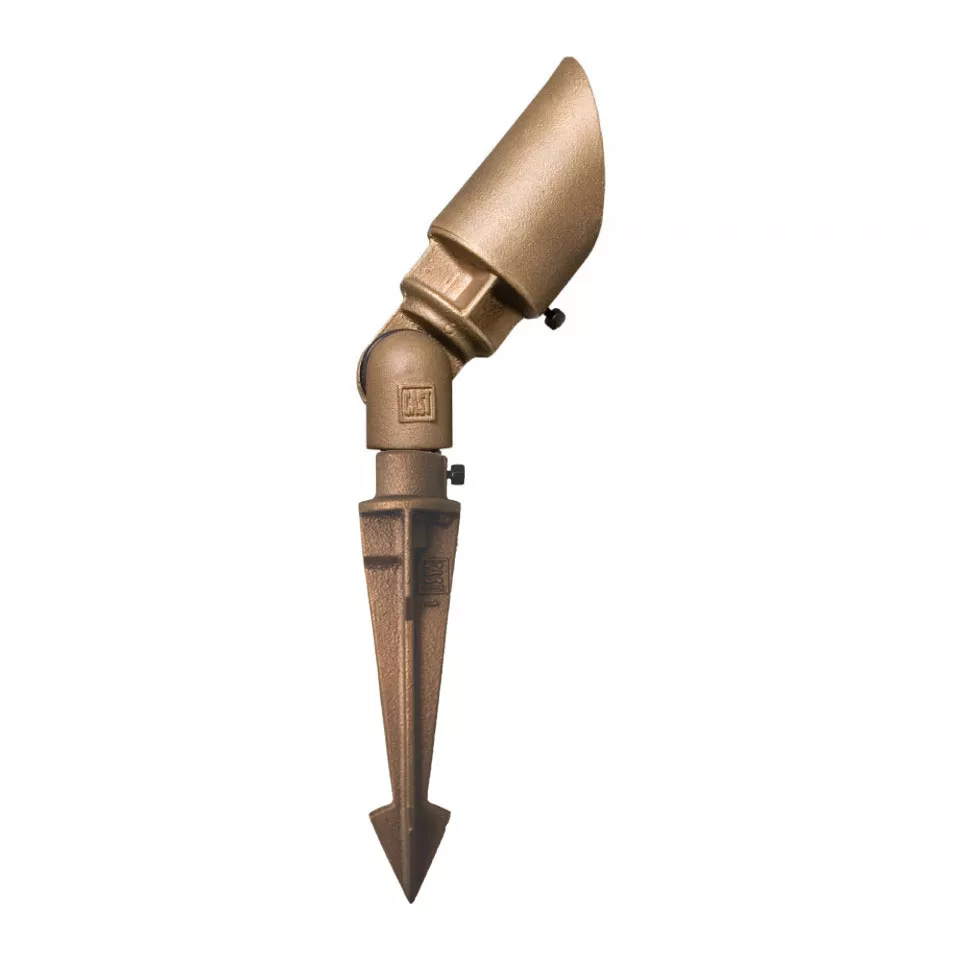

CAST Classic LED Bullet

CBLED141

Description

This low-voltage, integrated, LED landscape light combines rugged solid construction with the industry's most advanced and feature-filled LED module. With just one finish (solid sand-cast bronze), two light levels, and 3 optical beam spreads, this one LED light replaces (and surpasses) the dozens of models from other manufacturers.

Applications

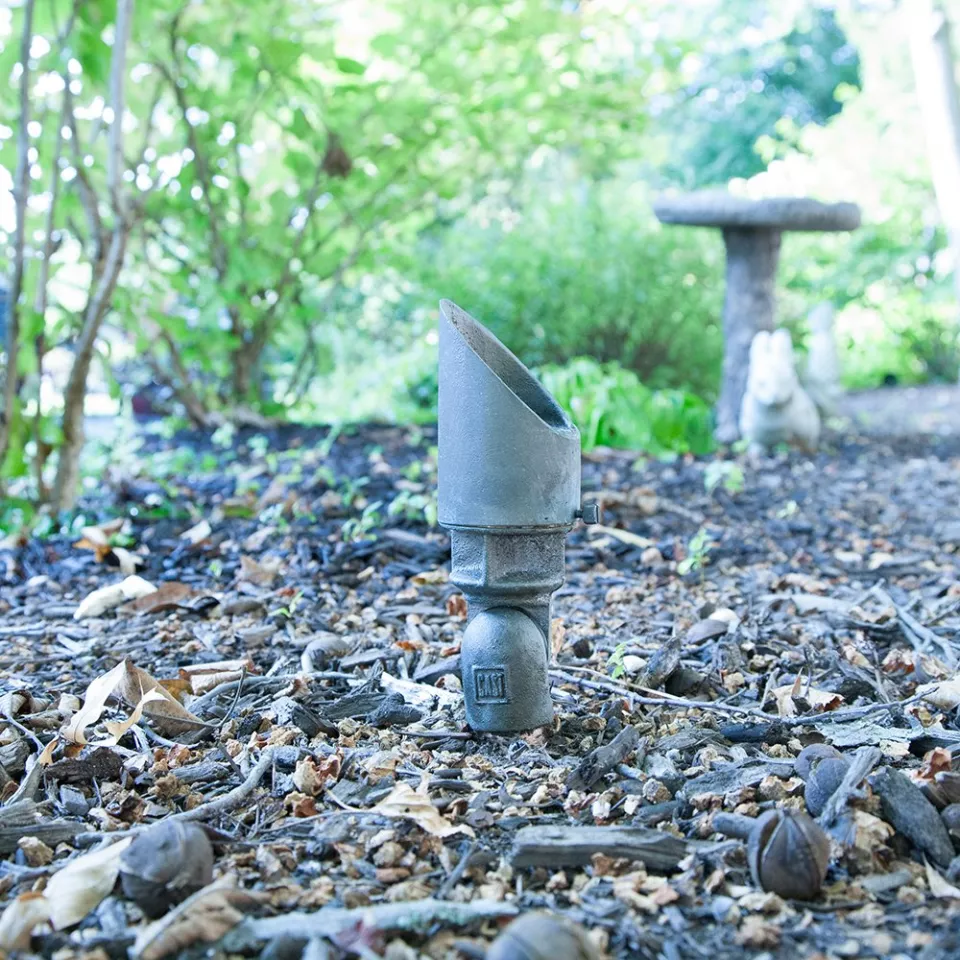

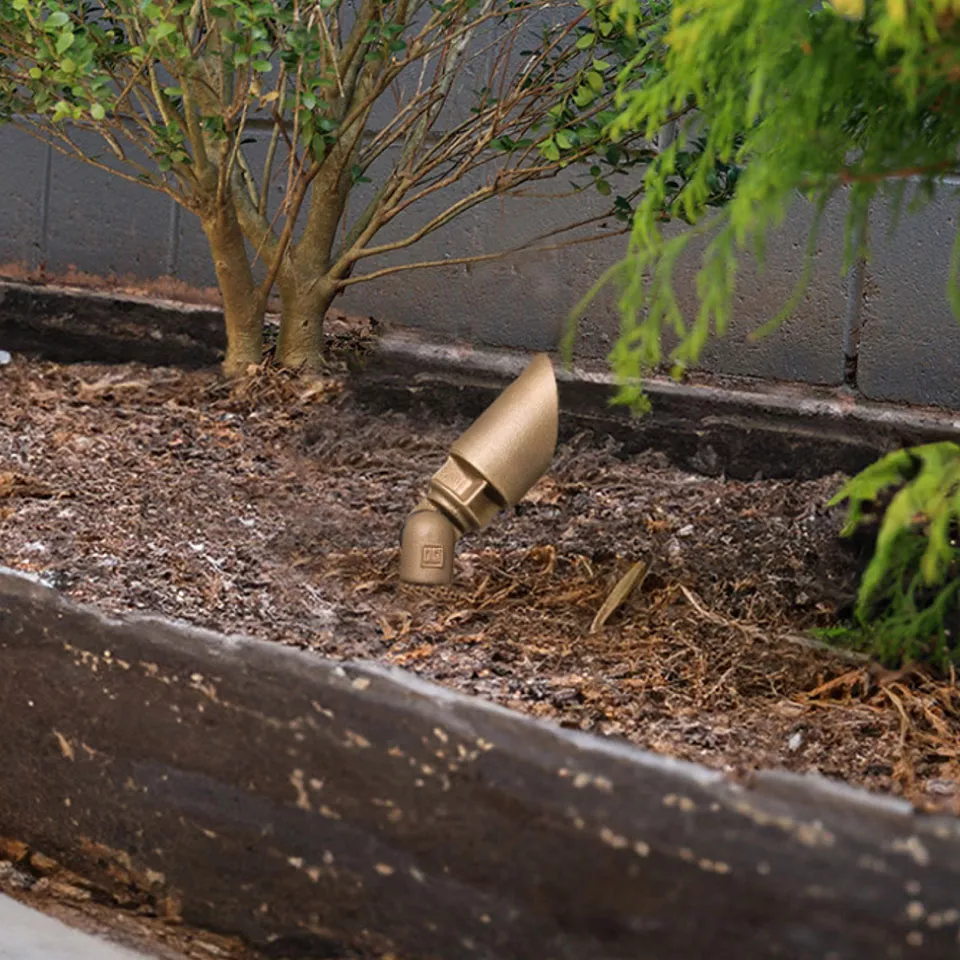

Suitable for uplighting plant material, structures and architectural features. Design flexibility with a high/low switch and interchangeable optics. This fixture can not be used as a downlight.

Features

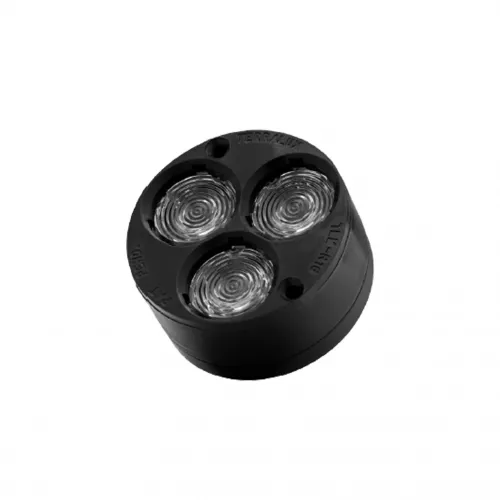

  • Replaceable LED module (MR-16 size) thermally bonded to solid bronze fixture body for optimal heat dissipation.

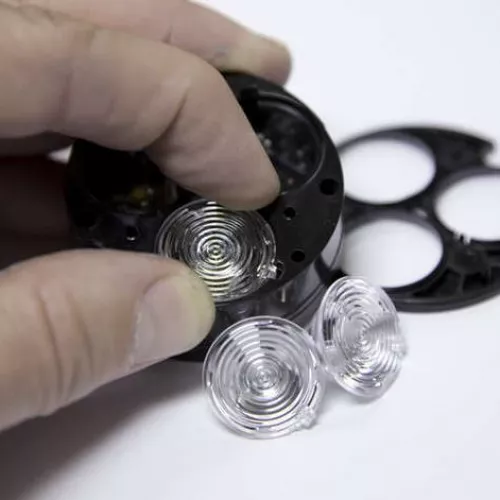

  • Replaceable optics for beam angles of 41 degrees (included), 21 degrees, and 12 degrees (both purchased separately).
  • Optics are UL listed components; made of high-temperature polycarbonate
  • Hi-Lo switch lets you choose from two Lumen levels
  • LEDSense technology controls forward current to compensate for conditions of extreme ambient heat.
  • Accepts input voltages between 10v and 24V AC or DC for maximum system design flexibility.
  • Will not cause electromagnetic interference (EMI)
  • Automatic recognition and compensation for varied magnetic and electronic transformer types.
  • Dimmable with standard low-voltage phase dimmers.
  • Warm white color temperature (2,720K) and high color rendering index (80 CRI) that closely matches incandescent lighting.
  • L70 of 60,500 hrs.
  • UL/CSA/RoHS Recognized, FCC Class A Conducted and Radiated Emmissions compliant.
Models
  • CBLED141
Quick Info
  • CAST Lighting magnetic toroidal core Transformers: Journeymen 75, 150, 300, 600, & 900 Watt and Master Series 900 & 1200 Watt
  • CAST No-OX Tin-Coated Marine-Grade Wire Available in #8/2, #10/2, #12/2, #14/2, & #16/2 gauges.
  • Astronomical Digital & Mechanical Timers
  • Photo Cells
  • Seamless non-insulated crimp connections & Heat shrink for wire connections

Specifications

Dimensions:

Body: 2.5" wide x 9" tall (fully extended)

Stake: 8.5" long x 4.6"

Construction:

  • Body and Shroud: Solid sand-cast bronze
  • Stake: Solid sand-cast bronze
  • Socket: High-temperature MR-16 socket
  • Glass: Flat, tempered, hardened, crystal-clear glass
  • Retaining Screw: Stainless steel
  • Internal Wiring: Tin-coated wire, crimped and sealed connections, protected with fiberglass sleeving
  • External Wire: Includes 25 ft. #18/2 tin-coated lead wire
  • LED Module: Secured with two stainless steel screws to fixture base

LED Specifications:

  • LED Light source: Life (L70) 60,500 hrs., Color Temp., 2720°K, CRI 80
  • Input voltage: 10 to 24 V AC or DC
  • Power Low setting: Amps .52, Watts 5.86, Power Factor .93 Volt Amps 6.3
  • Power High setting: Amps .82, Watts 9.25, Power Factor .94 Volt Amps 9.84
  • Lumen Output Low setting: 269 lm
  • Lumen Output High setting 328 lm
  • Center Beam Candela Low setting: 781
  • Center Beam Candela High setting 946
  • FCC compliant for EMI interference

Listings:

  • Emission Standards: FCC Class A conducted and radiated
  • UL 8750 recognized; CSA C22.2 No. 250.0-08 Canadian National Standard for Luminaires
  • RoHS

Packaging: 6/case
