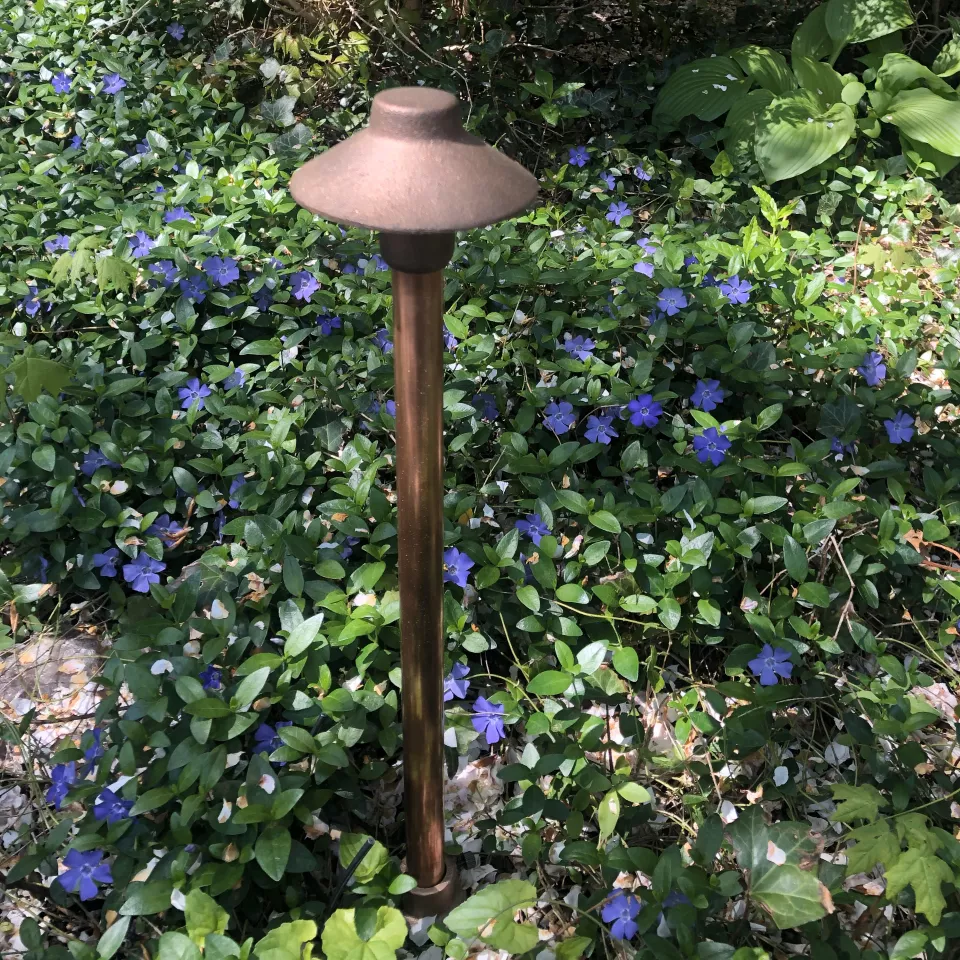

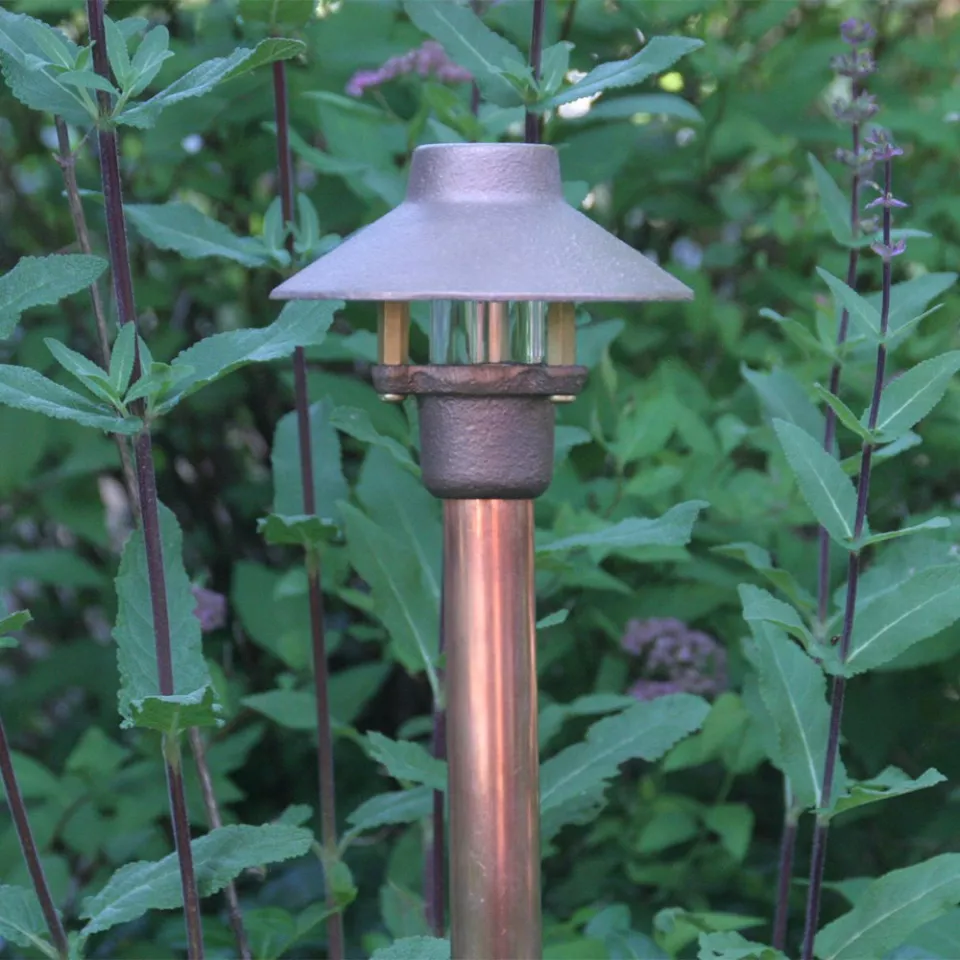

CAST Classic Mini China Hat Area/Path Light

CCH5CB

Description

This ultra-compact and rugged solid bronze & copper path/area light provides a soft glare free illumination. Especially useful in plant containers such as urns and garden boxes. Fixture can be stake or canopy mounted.

Applications

Suitable for lighting walkways, planting beds, planters, and niche applications

Features

  • Solid bronze hat and vase
  • Solid Bronze stake
  • Heavy-gauge copper stem
  • Thick-walled borosilicate glass lamp enclosure
  • Pre-wired with 25’ #16-2 tin-coated No-Ox® marine grade wire
  • High-temp socket
  • Spider Splice® ready
Models
  • CCH5CB
Quick Info
  • CAST Lighting magnetic toroidal core Transformers : Journeymen® 75, 150, 300, 600, & 900 Watt and Master Series 900 & 1200 Watt
  • CAST No-Ox® Tin-Coated Marine-Grade Wire (Available in #8/2, #10/2, #12/2, #14/2, & #16/2 gauges)
  • Astronomical Digital & Mechanical Timers
  • Photo Cells
  • Seamless non-insulated crimp connections & Heat shrink for wire connections

Specifications

  • Dimensions and Weight:
    • Stem, Body, and Hat: 13.25” tall x 4” wide
    • Stake 6.25”
    • Weight: 5 lbs.
  • Listing: conform to UL Std’s 1838 & 8750; CE; Certified to CAN/CSA Std’s C22.2 No. 250.0 & C22.2 No. 250.13. Suitable for wet locations. FCC Class B conducted and radiated. RoHs.

Lamp Specifications For CCH5CB

    *2.5W, 9-20 volt operating range, G4 Bi-pin LED Lamp (SLBP250L) included.

    *Halogen Option: 12V 10W G4 Bi-pin- 20W max. (CJC10W).

  • Construction:
  • Hat and Body: Solid Bronze
  • Stake: Solid Eurometal
  • Stem: Heavy gauge copper (0.05" wall thickness) unthreaded end to secure in stake with set screw (top and bottom), 1/2" NPT (stem bottom).
  • Socket Assembly: CCH5CB: High-temperature composite JC/G4 socket rated to 220º C; CCH5LED1: Integrated LED
  • Wiring: Tin-coated No-Ox® marine-grade wiring (inside fixture and external 25 ft. #16-2 lead); socket wire crimped and environmentally sealed with waterproof shrink tubing.
  • Packaging:
    • Packed 3/box, partially assembled
