CAST Classic New Orleans Area/Path Light

CNO1CB

Description

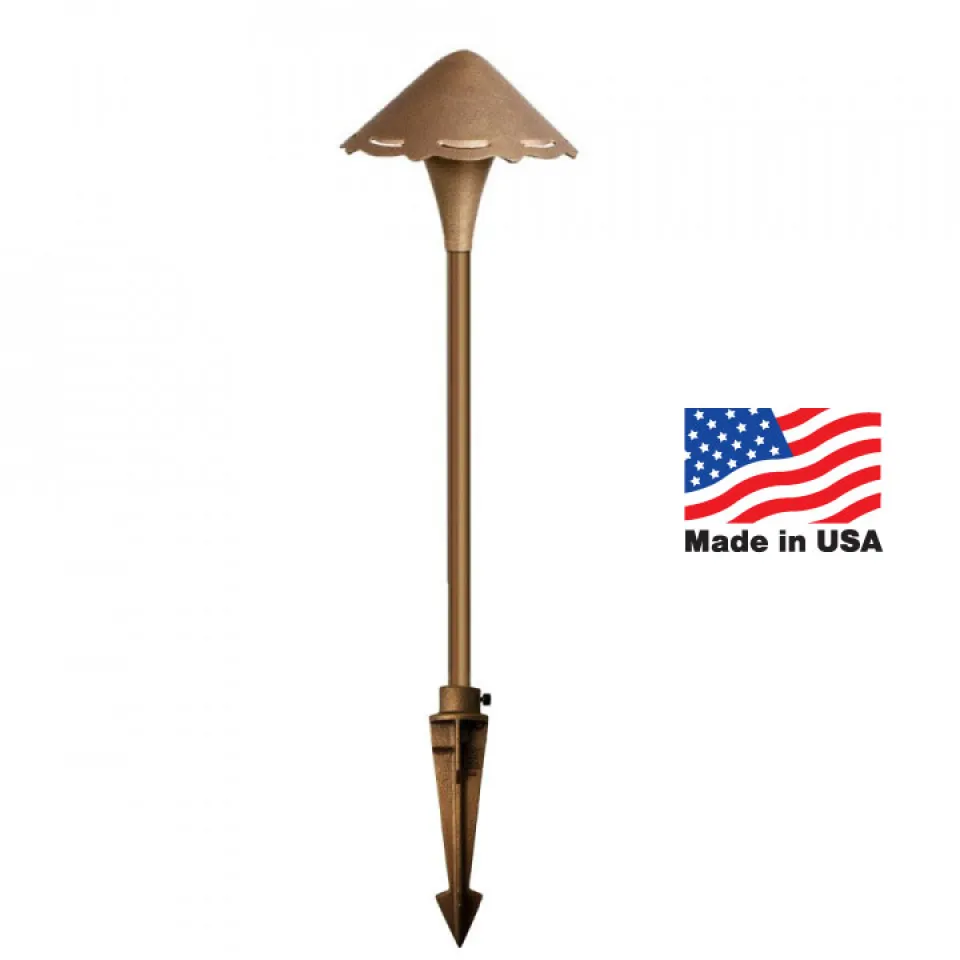

This rugged and decorative solid bronze & copper path/area light provides a soft glare-free illumination.

Made with 95% USA content!

LAMP NOT INCLUDED: You can use the S8 Wedge Base Lamp - SL3156250L or for an outstanding glare free light source, the LED Path Light Module - CALED2

Applications

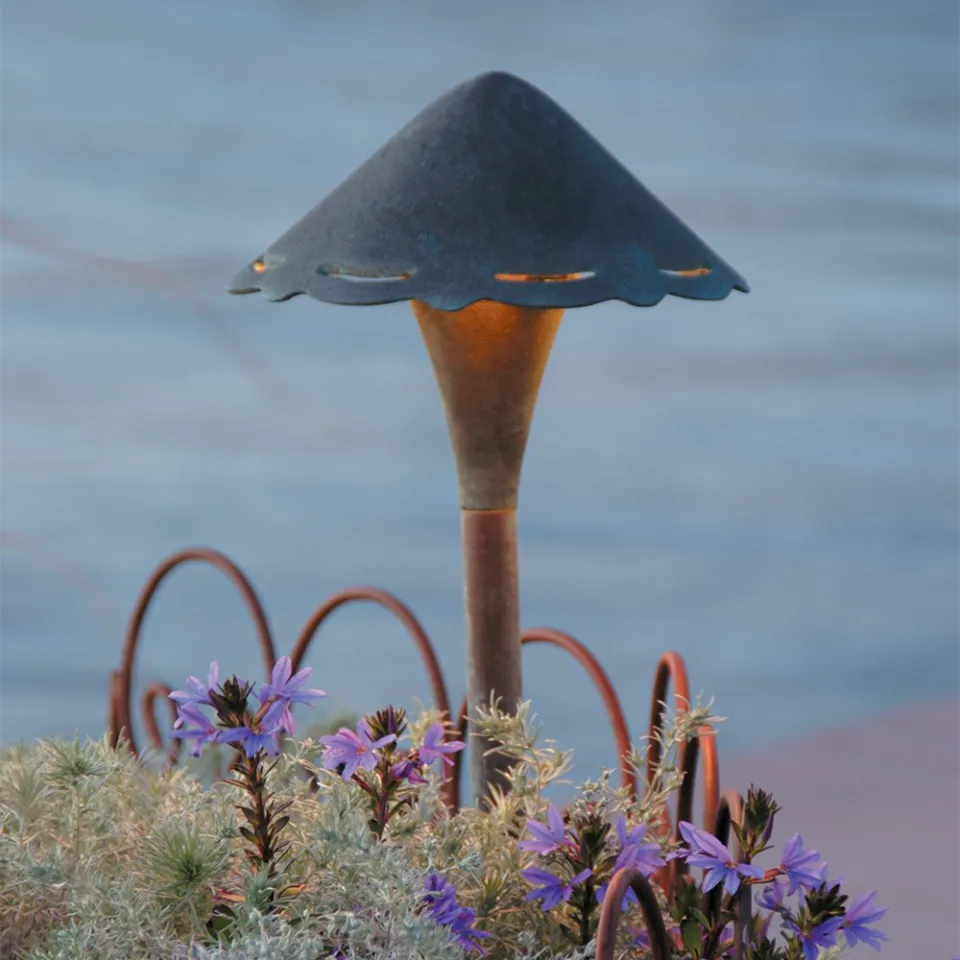

Suitable for lighting walkways, planting beds, and other areas

Features

  • Easily converted to LED by adding the CALED2 Module

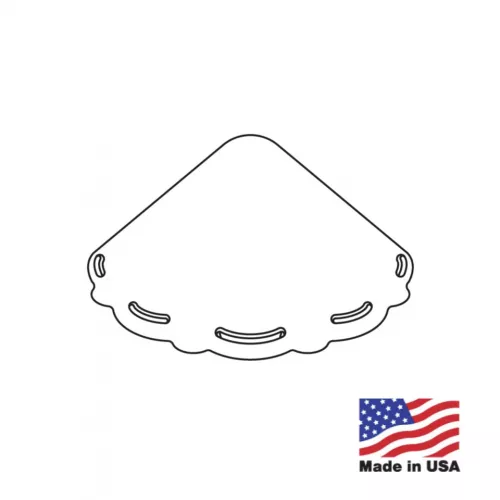

  • Solid bronze hat and vase
  • Solid black Coated Eurometal stake
  • Heavy-gauge copper stem
  • Pre-wired with 25’ #16-2 tin-coated No-Ox® marine grade wire
  • High-temp socket
  • Spider Splice® ready
Models
  • CNO1CB
Quick Info
  • CAST Lighting magnetic toroidal core Transformers Journeymen 75, 150, 300, 600, & 900 Watt and Master Series 900 & 1200 Watt
  • CAST No-OX Tin-Coated Marine-Grade Wire Available in #8/2, #10/2, #12/2, #14/2, & #16/2 gauges.
  • Astronomical Digital & Mechanical Timers
  • Photo Cells
  • Seamless non-insulated crimp connections & Heat shrink for wire connections

Specifications

  • Dimensions and Weight: Stem, Body, and Hat: 22" tall x 8" fully extended
    • Stake 8.5”
    • Weight: 8 lbs.
  • Lamp Specifications: Lamp: 12V S8 Wedge Base (35W max.)  (not included)
  • Listing: All CAST Lights conform to: UL Std's 1838 & 8750; CE; Certified to CAN/CSA Std's C22.2 No. 250.0 & C22.2 No. 250.13. Suitable for wet locations. FCC Class B Conducted and Radiated. RoHS.
  • Construction:
    • Hat and Body: Solid Sand-Cast Bronze
    • Stake: Solid black coated Eurometal
    • Stem: Heavy duty copper (unthreaded end to secure in stake with set screw) (0.115” wall thickness)
    • Socket Assembly: High-temperature composite S8 socket rated to 220 degrees Celsius.
    • Wiring: Tin-coated No-Ox marine-grade wiring (inside fixture and external 25 ft. #16-2 lead); socket wire crimped and soldered to lead wire using tin solder and tin crimps protected with waterproof shrink tubing and fiberglass sleeve.
  • Packaging:
    • Hat packed 3/box.
    • Stem assemblies (CSAA) 3/box.
