CAST Classic New Orleans Canopy-Mount Area Light

CNO13CB

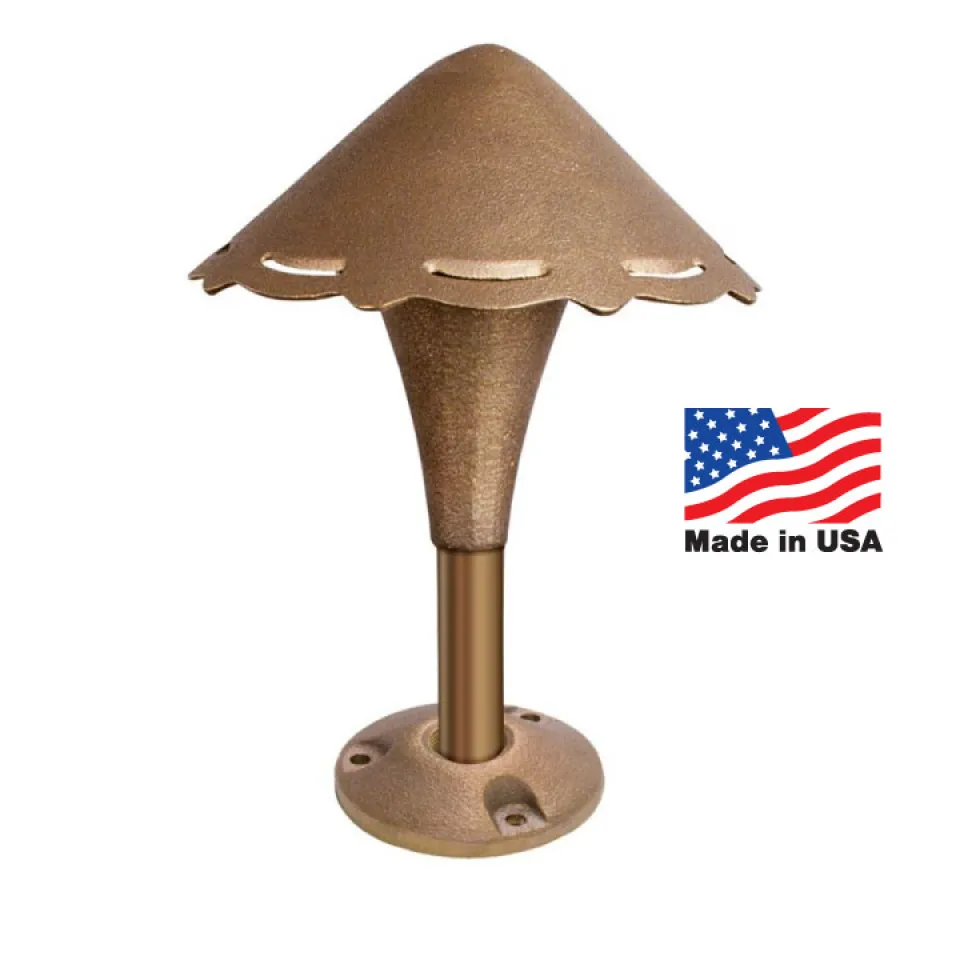

This rugged compact solid bronze canopy-mount area light provides a soft glare free illumination. Solid bronze canopy-mount and short stature makes this an ideal fixture for mounting on posts and elevated surfaces.

Made with 75% USA content!

LAMP NOT INCLUDED: You can use the S8 Wedge Base Lamp - SL3156250L or for an outstanding glare free light source, the LED Path Light Module - CALED2

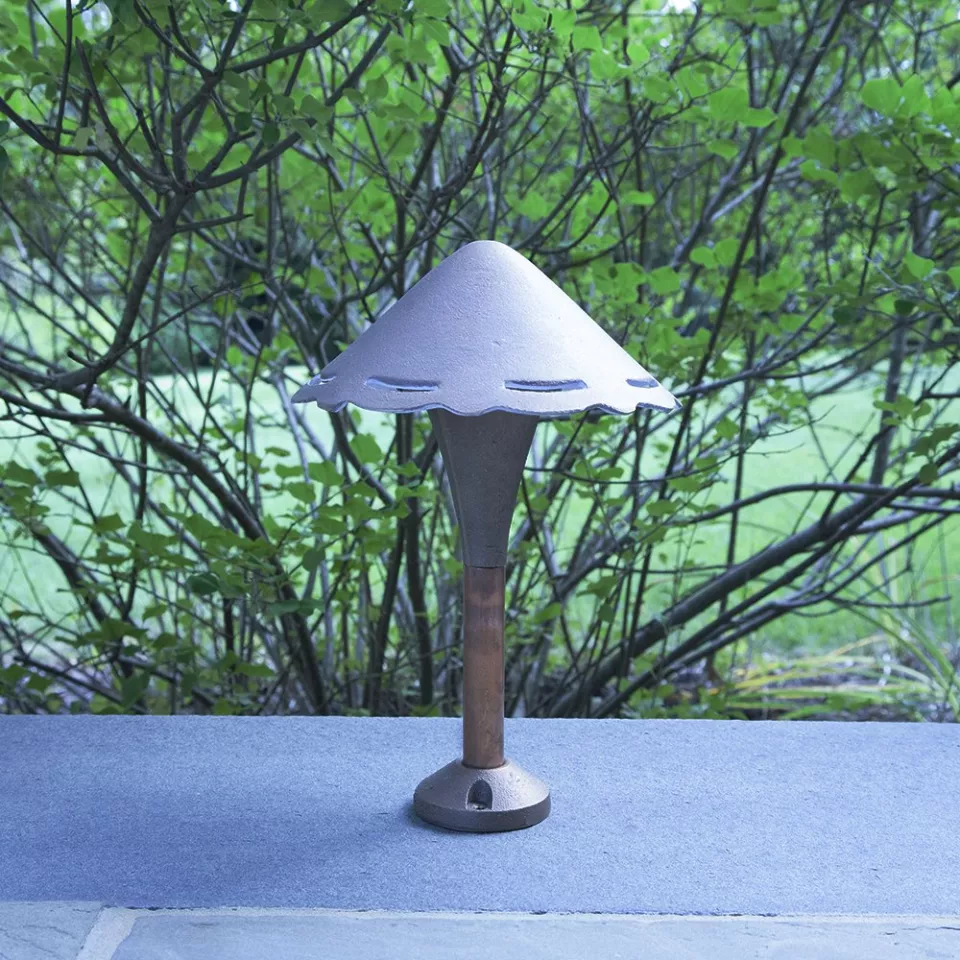

Suitable for lighting walkways and other areas when mounted on posts or elevated surfaces

Solid bronze hat, vase, and canopy-mount
Heavy-gauge copper stem
Pre-wired with 25’ #16-2 tin-coated No-Ox® marine grade wire
High-temp socket
Spider Splice® ready

CNO13CB

CAST Lighting magnetic toroidal core Transformers (Journeymen 75, 150, 300, 600, & 900 Watt and Master Series 900 & 1200 Watt)

CAST No-OX Tin-Coated Marine-Grade Wire (Available in #8/2, #10/2, #12/2, #14/2, & #16/2 gauges)

Astronomical Digital & Mechanical Timers
Photo Cells
Seamless non-insulated crimp connections & Heat shrink for wire connections

Dimensions and Weight: Stem, Hat, and, Body: 12" x 8" wide
- Canopy mount: 3” round
Lamp Specifications: Lamp: 12V S8 Wedge Base (35W max.) (not included)
Listing: All CAST Lights conform to: UL Std's 1838 & 8750; CE; Certified to CAN/CSA Std's C22.2 No. 250.0 & C22.2 No. 250.13. Suitable for wet locations. FCC Class B Conducted and Radiated. RoHS.
Construction:
- Hat and Body: Solid Sand Cast Bronze
- Stem: heavy-duty gauge copper
- Canopy Mount Base: Solid sand-cast bronze
- Internal Reflector: Polished aluminum
- Socket Assembly: High-temperature socket.
- Wiring: Tin-coated No-Ox marine-grade wiring (inside fixture and external 25 ft. #16-2 lead); socket wire crimped and soldered to lead wire using tin solder and tin crimps protected with waterproof shrink tubing and fiberglass sleeve.
Packaging:
- Packed 5/box; fully assembled.
