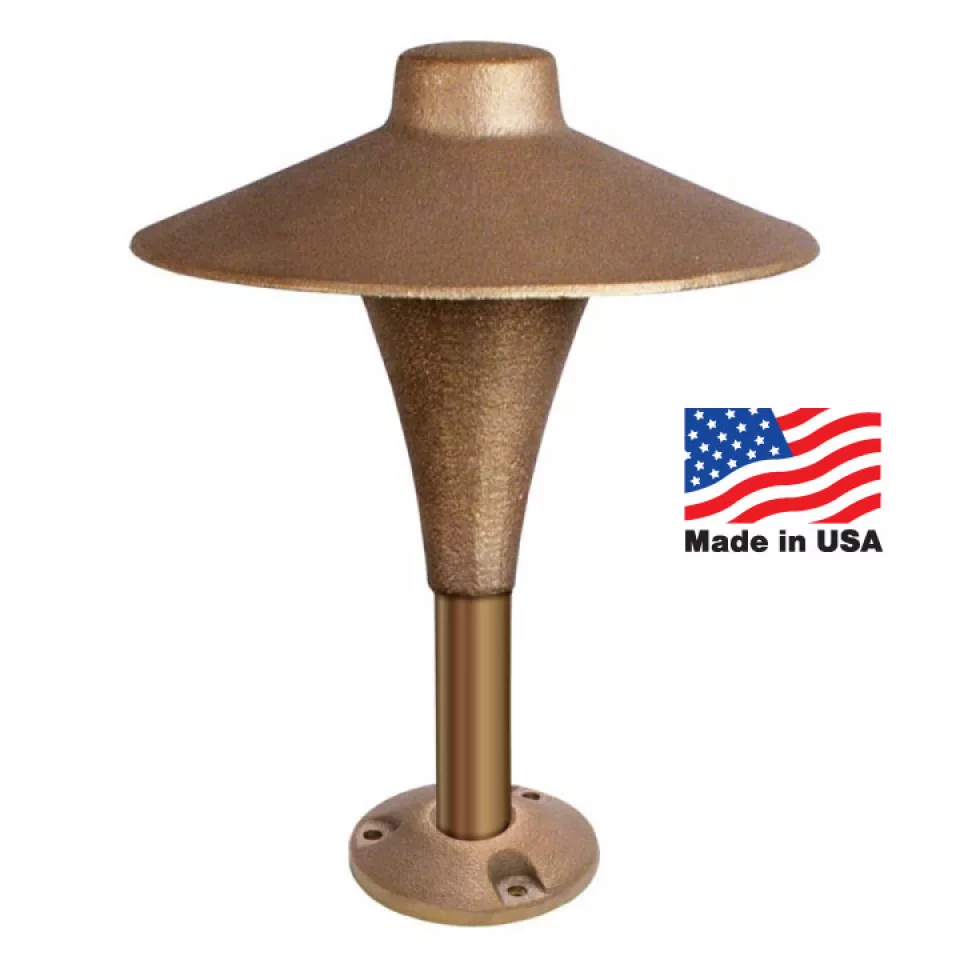

CAST Classic Small China Hat Canopy Mount Area Light

CCH13CB

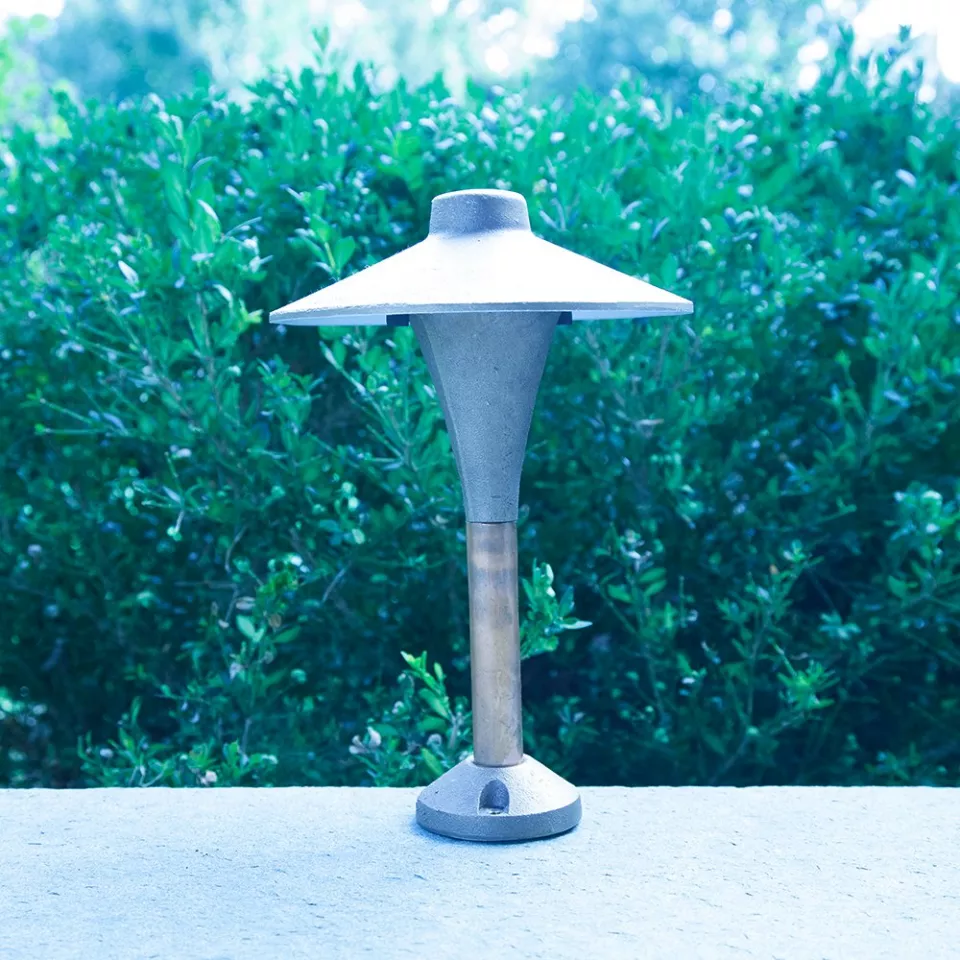

This rugged compact solid bronze canopy-mount area light provides a soft glare free illumination. It is ideal for mounting on fence or stone wall columns; capstones, or piers.

Made with 75% USA Content!

LAMP NOT INCLUDED: You can use the S8 Wedge Base Lamp - SL3156250L or for an outstanding glare free light source, the LED Path Light Module - CALED2

Suitable for lighting walkways and other areas when mounted on posts or elevated surfaces.

Solid bronze hat and vase
Glare Free light source
Heavy-gauge copper stem
Pre-wired with 25’ 16/2 tin-coated No-Ox® marine grade wire
High-temp socket
Spider Splice® ready
Bronze Flush Canopy Mount

CCH13CB

CAST Lighting magnetic toroidal core Transformers
Journeymen® 75, 150, 300, 600, & 900 Watt and Master Series 900 & 1200 Watt
CAST No-Ox® Tin-Coated Marine-Grade Wire
Available in #8/2, #10/2, #12/2, #14/2, & #16/2 gauges.
Astronomical Digital & Mechanical Timers
Photo Cells
Seamless non-insulated crimp connections & Heat shrink for wire connections

Dimensions and Weight: Stem, Body, and Hat: 12" x 7" fully extended
- Canopy: 3" round
Lamp Specifications: Lamp: 12V S8 Wedge Base (35W max.) (not included).
Listing: All CAST Lights conform to: UL Std's 1838 & 8750; CE; Certified to CAN/CSA Std's C22.2 No. 250.0 & C22.2 No. 250.13. Suitable for wet locations. FCC Class B Conducted and Radiated. RoHS.
Construction:
- Hat and Body: Solid Sand-Cast Bronze
- Stem: Heavy duty copper (unthreaded end to secure in stake with set screw) (0.115” wall thickness)
- Socket Assembly: High-temperature composite S8 socket rated to 220 degrees Celsius.
- Wiring: Tin-coated No-Ox marine-grade wiring (inside fixture and external 25 ft. 16/2 lead); socket wire crimped and soldered to lead wire using tin solder and tin crimps protected with waterproof shrink tubing and fiberglass sleeve.
- Bronze Flush Canopy Mount
Packaging:
- Packed 1/box; fully assembled.
