Products

CAST Classic Tree Light

CCTL2C

Description

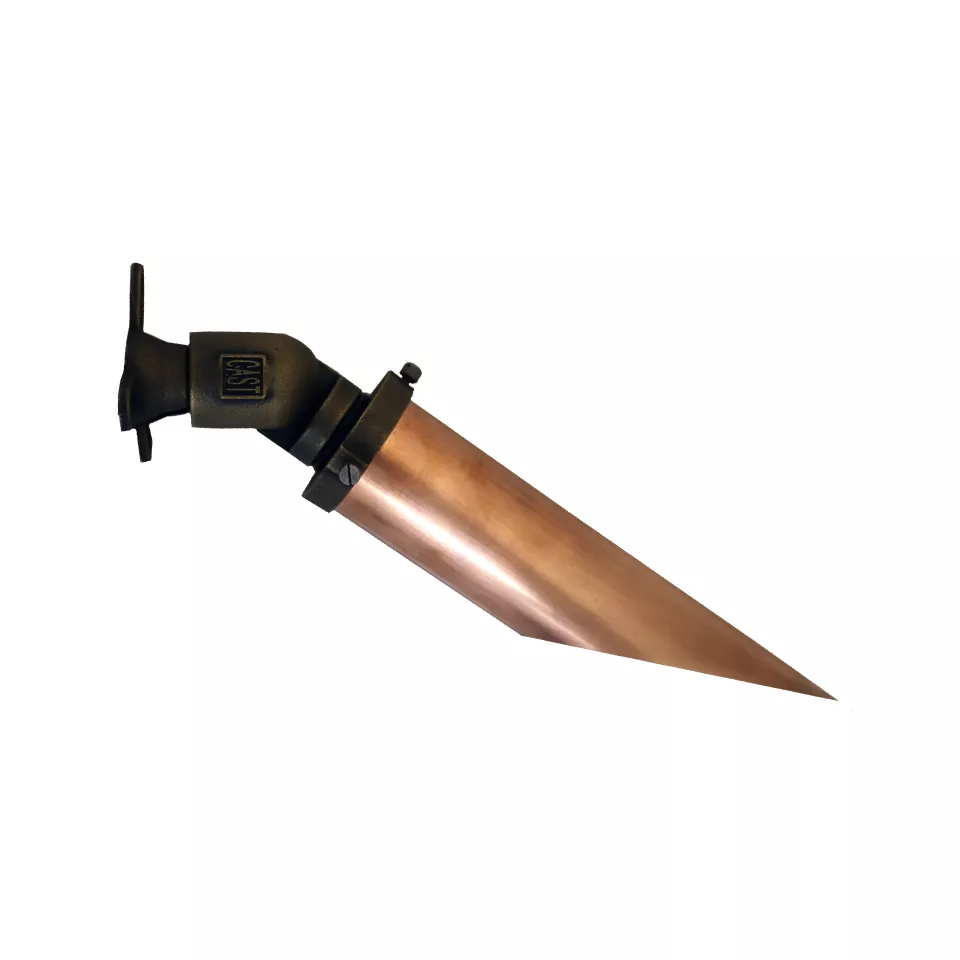

Our rugged, LED drop-in MR-16 tree light features a heavy-gauge copper shroud with an oil-rubbed brass base and knuckle.

Applications

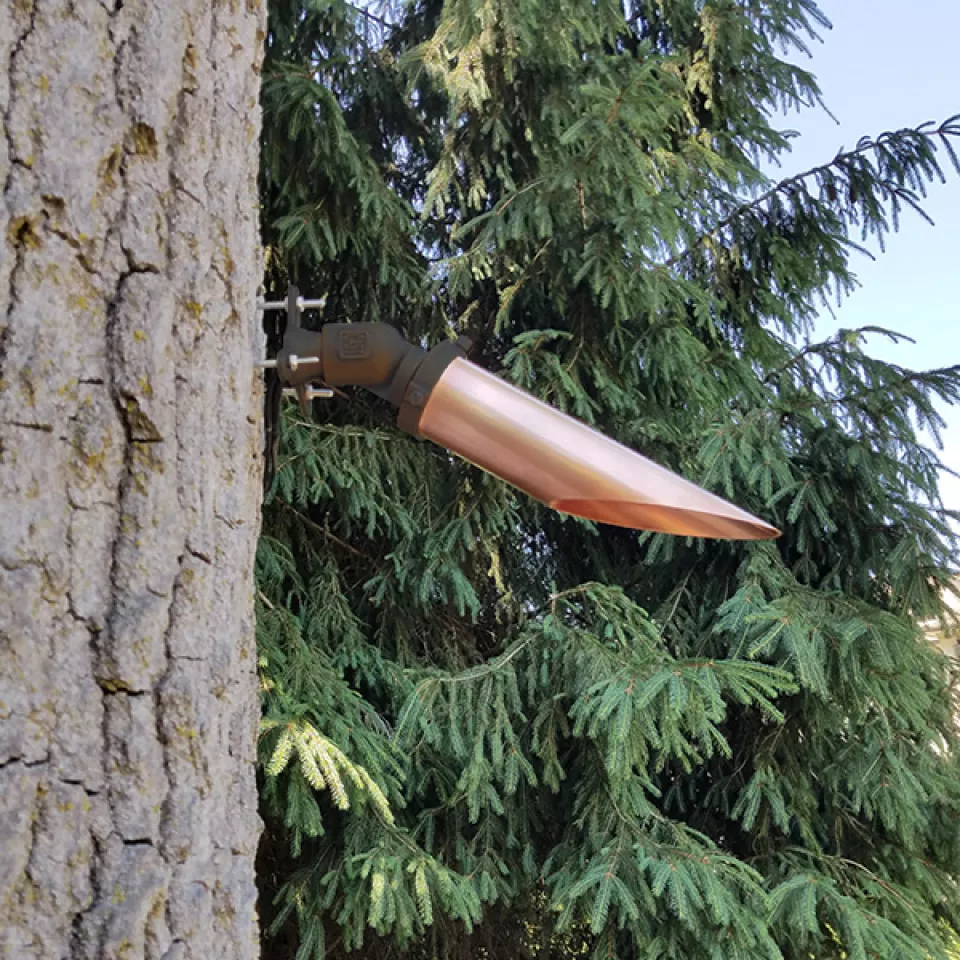

The CAST Classic Tree Light is suitable for mounting in trees or on structures to provide a natural downlighting or moonlighting effect.

Features

  • Heavy-gauge, extra-long, copper shroud with exceptional glare control
  • Oil-rubbed brass knuckle can be adjusted to any angle
  • Oil-rubbed brass mounting bracket features quick release for one-handed installation
  • Stainless steel mounting hardware sets bracket away from tree to prevent damage from mold and fungus (included, CTREEH1)
  • Pre-wired with 35’ 16/2 tin-coated No-Ox® marine grade wire
  • High-temp socket with solid nickel contacts
  • Includes heat shield to protect socket
  • Spider Splice® ready
Models
  • CCTL2C
Quick Info
  • CAST Lighting magnetic toroidal core Transformers
    Both Journey Men 75, 150, 300, 600, & 900 Watt and Master Series 900 & 1200 Watt
  • CAST No-OX Tin-Coated Marine-Grade Wire
    Available in #8/2, #10/2, #12/2, #14/2, & #16/2 gauges.
  • Astronomical Digital & Mechanical Timers
  • Photo Cells
  • Seamless non-insulated crimp connections & Heat shrink for wire connections

Specifications

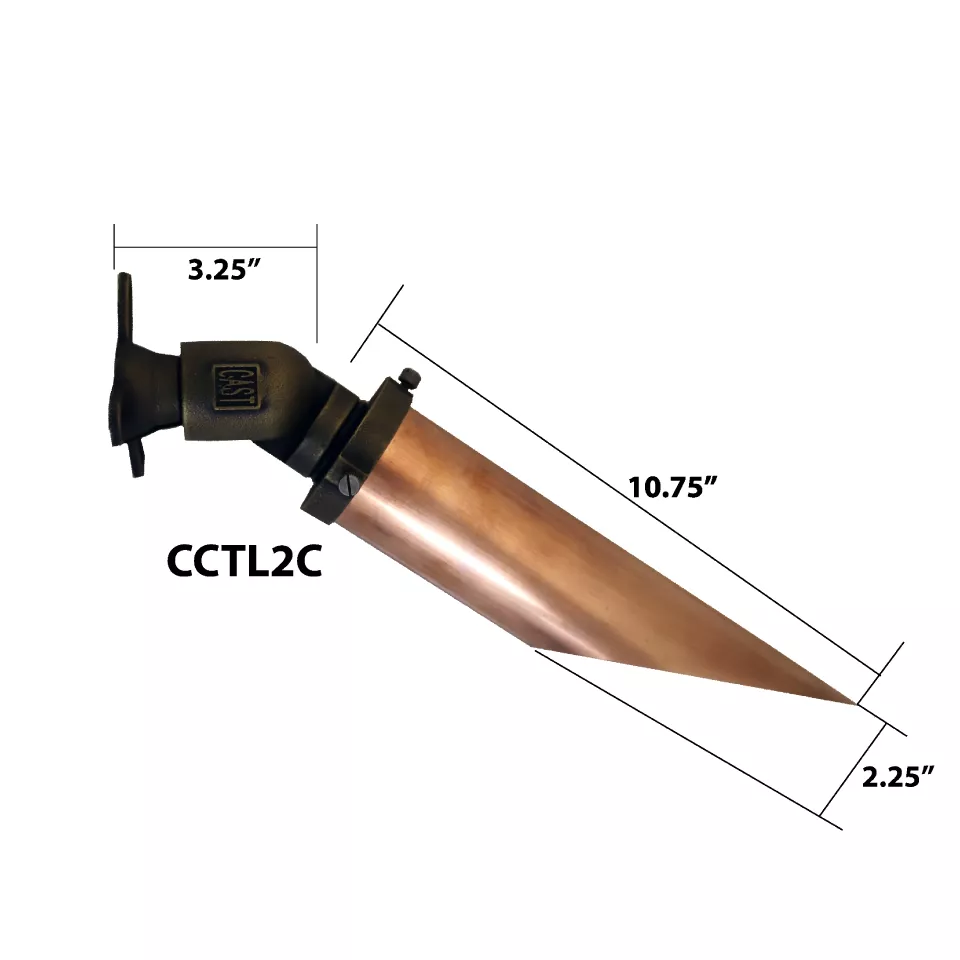

  • Dimensions and Weight: Shroud, base, and bracket (fully extended): 14” x 2.25”
  • Weight: 4 lbs
  • Lamp Specifications: Lamp: 12V MR-16 (50W max.) Lamp not included.
  • Listing: All CAST Lights conform to: UL Std's 1838 & 8750; CE; Certified to CAN/CSA Std's C22.2 No. 250.0 & C22.2 No. 250.13. Suitable for wet locations. FCC Class B Conducted and Radiated. RoHS.
  • Construction:
    • Base, knuckle, and bracket: Oil-rubbed brass
    • Shroud: Heavy gauge copper secured with two stainless steel set screws
    • Lens: Convex borosilicate glass
    • O-Rings: Silicone Rubber
  • Tree Mounting Hardware Kit (CTREEH1) Included.
  • Socket Assembly: High-temperature ceramic socket with solid nickel contacts (to mate with solid nickel MR-16 pins), 316 stainless steel internal contact spring, 304 stainless steel lamp spring, Aluminum heat reflector.
  • Wiring: Tin-coated No-Ox marine-grade wiring (inside fixture and external 35 ft. 16/2 lead); socket wire crimped and soldered to lead wire using tin solder and tin crimps protected with waterproof shrink tubing and fiberglass sleeve.
  • Packaging: Packed 6/box; fully assembled
