CAST Classic Wall Wash

CWW1CB

Description

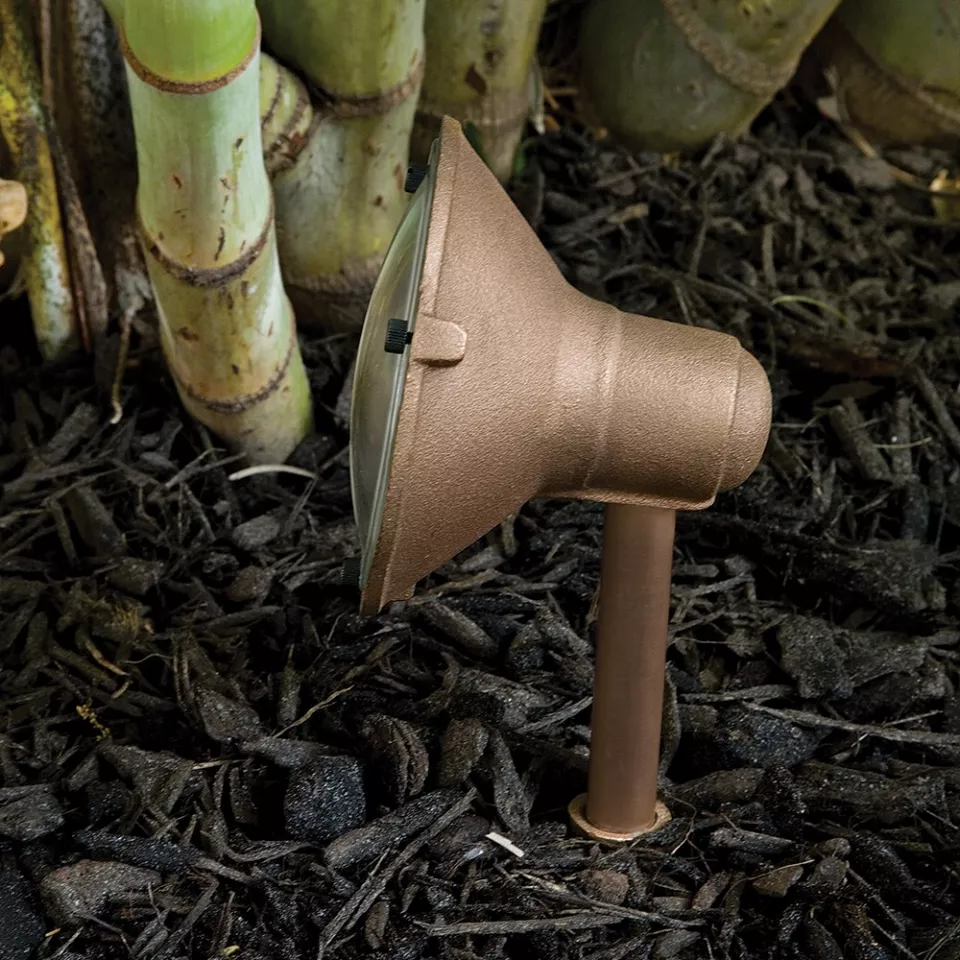

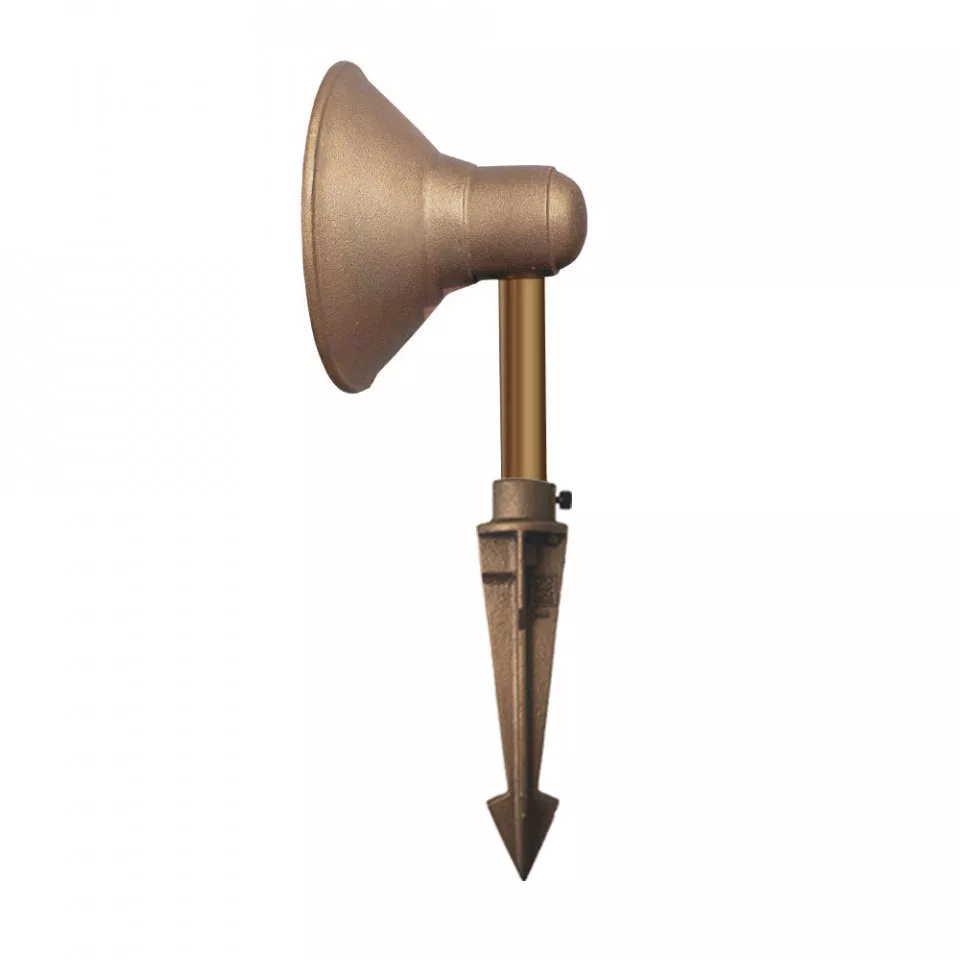

This compact rugged solid bronze wall wash features a convex borosilicate lens. The CWW1CB can be used with an S8 wedge-based halogen lamp or a drop-in LED lamp. Existing installations can be converted to integrated LED by using the CSWLED2 module.

Applications

Suitable for illuminating walls and other broad area applications

Features

  • Solid bronze shroud, body, and stake
  • Pre-wired with 25’ #16-2 tin-coated No-Ox® marine grade wire
  • High-temp socket with solid nickel contacts
  • Spider Splice® ready
Models
  • CWW1CB
Quick Info
  • CAST Lighting magnetic toroidal core Transformers Journeymen 75, 150, 300, 600, & 900 Watt and Master Series 900 & 1200 Watt
  • CAST No-OX Tin-Coated Marine-Grade Wire Available in #8/2, #10/2, #12/2, #14/2, & #16/2 gauges.
  • Astronomical Digital & Mechanical Timers
  • Photo Cells
  • Seamless non-insulated crimp connections & heat-shrink for wire connections

Specifications

  • Overall fixture height from ground level with shroud, base, and stem: 8” tall  (4.25” deep)
    • Stake: 8.5”
    • Shroud 5" diameter
    • Weight: 5.2 lbs
  • Lamp Specifications for CWW1CB:

  *2.5W, 9-20 volt operating range, S8 LED lamp (SL3156250L) included.

  *Halogen Option: 12V 25W S8 Wedge Base- 35W max. (C3156K).

  • Listing: All CAST Lights conform to: UL Std's 1838 & 8750; CE; Certified to CAN/CSA Std's C22.2 No. 250.0 & C22.2 No. 250.13. Suitable for wet locations. FCC Class B Conducted and Radiated. RoHS.
  • Construction:
    • Shroud: Solid Sand-Cast Bronze
    • Stake: Solid Sand-Cast Bronze
    • Stem: 4” Heavy-duty copper (unthreaded end to secure in stake with set screws.) (0.115” wall thickness)
    • Lens: Convex borosilicate with silicon gasket to prevent water intrusion
    • Socket Assembly: High-temperature composite S8 socket rated to 220ºC.
    • Wiring: Tin-coated No-Ox marine-grade wiring (inside fixture and external 25 ft. #16-2 lead); socket wire crimped and soldered to lead wire using tin solder and tin crimps protected with waterproof shrink tubing and fiberglass sleeve.
  • Packaging:
    • Packed 4/box; fully assembled.
