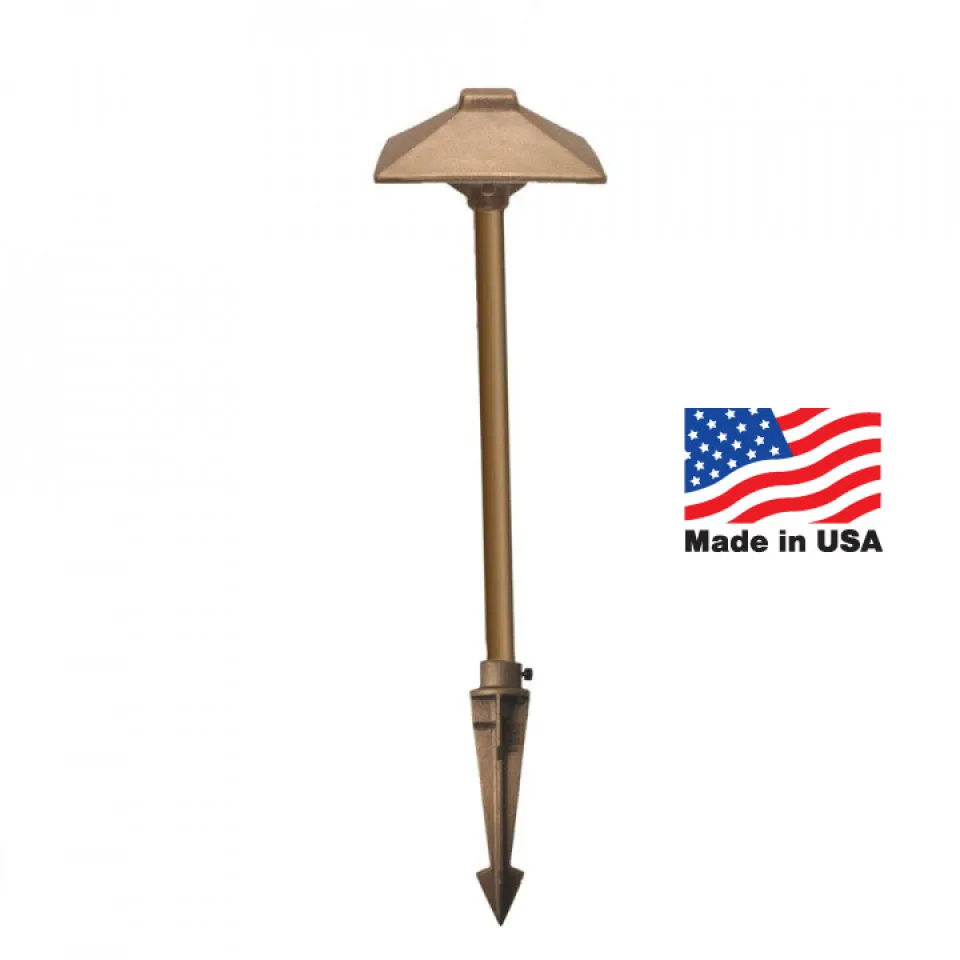

CAST Craftsman Borneo Integrated LED or Drop-In LED Path Light

CCPLBOB, CCPLBOBL

These solid bronze path lights are compact with extreme durability. Now
available with integrated LED lamps or bi-pin drop-in LED lamps.

Made with 70% USA content!

CCPLBOB - Integrated LED Lamp

CCPLBOBL - Drop-In LED Lamp, included.

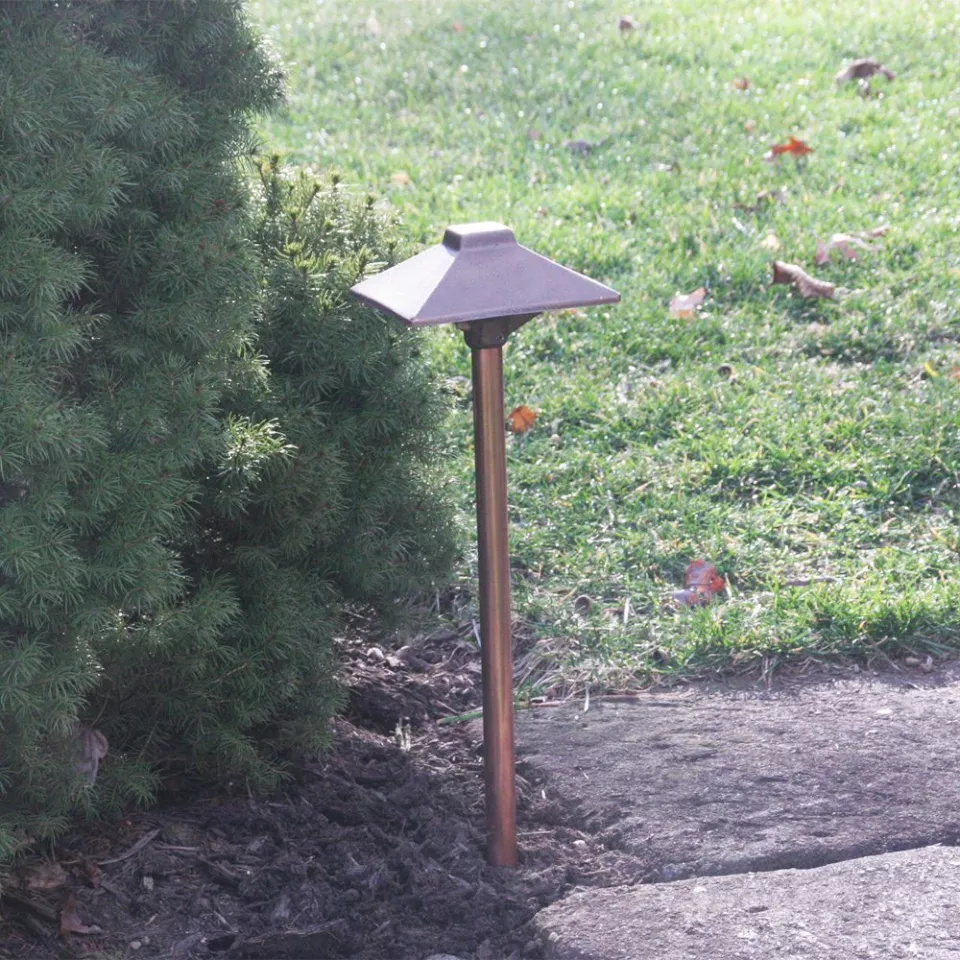

Suitable for lighting walkways, planting beds, and other areas.

Durability

CAST solid sand-cast bronze for unmatched corrosion resistance
Unbreakable bodies, hats, stems, and stake
No coatings to peel, flake, chip, or fade
No threads that weaken stems
Marine-grade Tin-Coated No-Ox Wire for lifetime electrical conductivity.

Performance

Premium-quality LEDs for consistent color temperature and accurate color rendering
Electronics protected from electrical spikes and surges
Electromagnetic radiation (EMI) filtered to prevent interference with wireless devices

Drop-In LED Borneo Path Light - Craftsman Series (CCPLBOBL)
Integrated LED Borneo Path Light - Craftsman Series (CCPLBOB)

CAST Lighting magnetic toroidal core Transformers: Journeymen 75, 150, 300, 600, & 900 Watt and Master Series 900 & 1200 Watt
CAST No-OX Tin-Coated Marine-Grade Wire (Available in #8/2, #10/2, #12/2, #14/2, & #16/2 gauges)
Astronomical Digital & Mechanical Timers
Photo Cells
Seamless non-insulated crimp connections & Heat shrink for wire connections

Dimensions:

18" height body and stem
8.5" Stake

CCPLBOB Integrated Lamp Specifications:

LED components integrated into fixture bodies to draw heat away
from the LEDs for maximum longevity and performance.
Fully sealed and protected LED components.
LED Light Source: 2 Cree LED, Life (L70): 62,000 Hrs.
Color Temp: 2790ºK, CRI: 82
Input Voltage: 10-24 Volts AC or DC
Power: .4 Amps, 4.22 Watts, Power Factor .89, Volt Amps 4.74
Lumen output-fixture: 114 lm
Maximum Candela: 46

CCPLBOBL Drop-In Lamp Specifications:

Lamp is field replaceable.
LED Light Source: SLBP250L Drop-In Bi-Pin Lamp (included).
Color Temp: 2750ºK, CRI: 80
Voltage Range: 10-20 Volts AC or DC
Power: 2.5 Watts, Volt Amps 3.0
Lumen output-fixture: 114 lm
Listing: All CAST Lights conform to: UL Std's 1838 & 8750; CE; Certified to CAN/CSA Std's C22.2 No. 250.0 & C22.2 No. 250.13. Suitable for wet locations. FCC Class B Conducted and Radiated. RoHS.

Construction:

Hat and Stake: Solid Sand-Cast Bronze
Stem: Heavy gauge copper pipe
5' tin-coated #18-2 No-Ox® marine-grade wire
