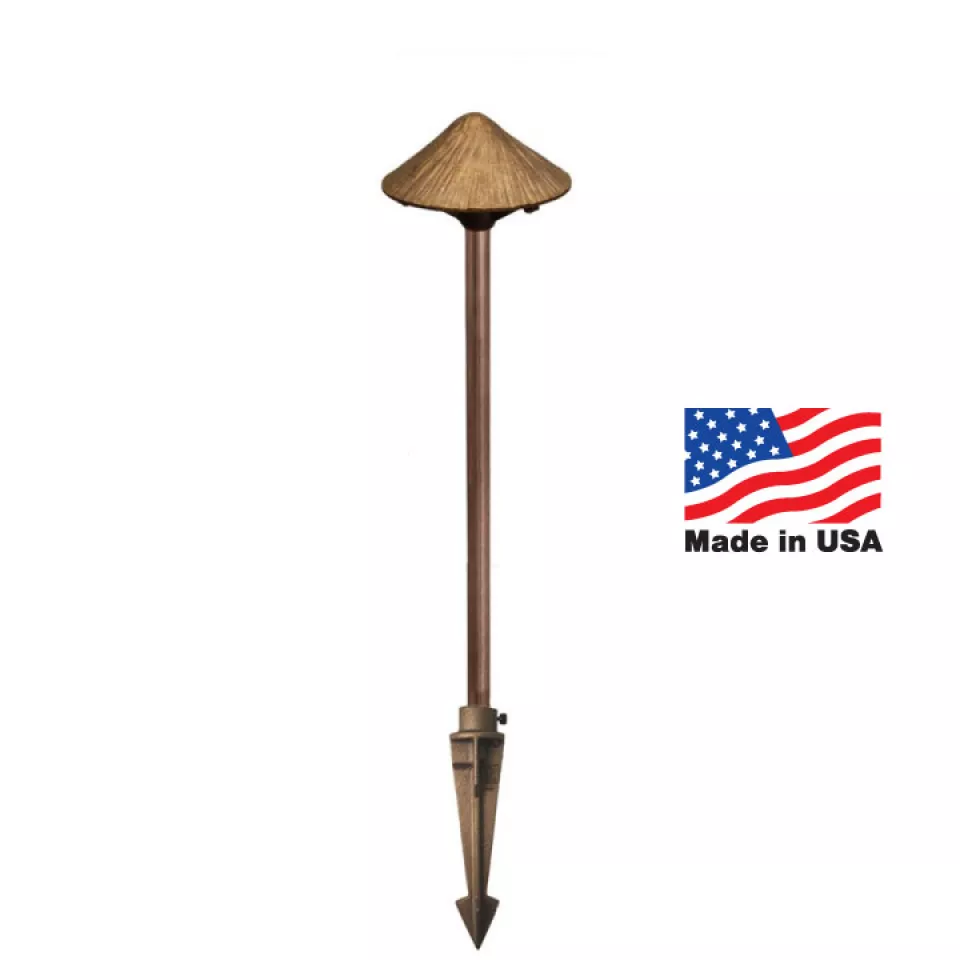

CAST Craftsman Cabana Integrated LED or Drop-In LED Path Light

CCPLCAB, CCPLCABL

These solid bronze path lights are compact with extreme durability. Now available with integrated LED lamps or bi-pin drop-in LED lamps.

Made with 70% USA content!

CCPLCAB - Integrated LED Lamp

CCPLCABL - Drop-In LED Lamp, included.

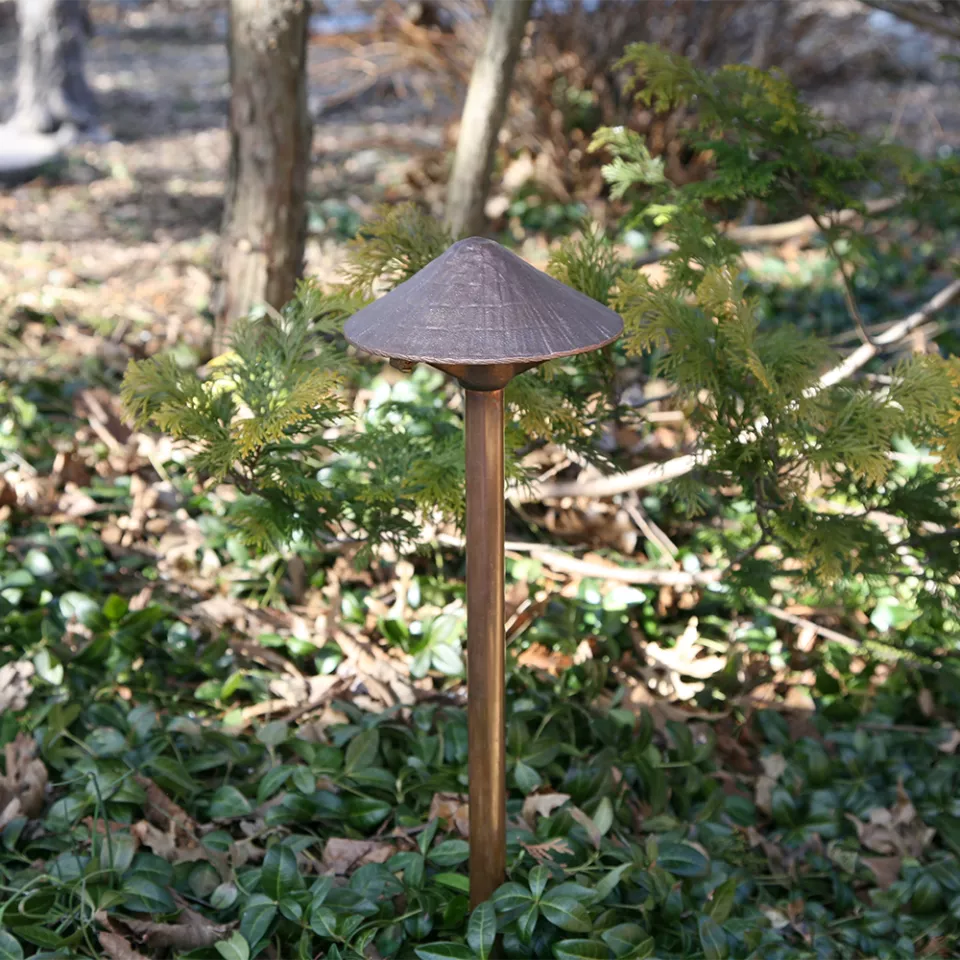

Suitable for lighting walkways, planting beds, and other areas.

Durability

CAST solid sand-cast bronze for unmatched corrosion resistance
Unbreakable bodies, hats, stems, and stake
No coatings to peel, flake, chip, or fade
No threads that weaken stems
Marine-grade Tin-Coated No-Ox Wire for lifetime electrical conductivity.

Performance

Premium-quality LEDs for consistent color temperature and accurate color rendering
Electronics protected from electrical spikes and surges
Electromagnetic radiation (EMI) filtered to prevent interference with wireless devices

Cabana Integrated LED Lamp - Craftsman Series (CCPLCAB)
Cabana Drop-In LED Lamp - Craftsman Series (CCPLCABL)

CAST Lighting magnetic toroidal core Transformers: Journeymen 75, 150, 300, 600, & 900 Watt and Master Series 900 & 1200 Watt

CAST No-Ox® Tin-Coated Marine-Grade Wire (Available in #8/2, #10/2, #12/2, #14/2, & #16/2 gauges)

Astronomical Digital & Mechanical Timers
Photo Cells
Seamless non-insulated crimp connections & Heat shrink for wire connections

Dimensions:

18" height body and stem
8.5" Stake

CCPLCAB Integrated Lamp Specifications:

LED components integrated into fixture bodies to draw heat away
from the LEDs for maximum longevity and performance.
Fully sealed and protected LED components.
LED Light Source: 2 Cree LED, Life (L70): 62,000 Hrs.
Color Temp: 2790ºK, CRI: 82
Input Voltage: 10-24 Volts AC or DC
Power: .4 Amps, 4.22 Watts, Power Factor .89, Volt Amps 4.74
Lumen output-fixture: 114 lm
Maximum Candela: 46

CCPLCABL Drop-In Lamp Specifications:

Lamp is field replaceable.
LED Light Source: SLBP250L Drop-In Bi-Pin Lamp (included).
Color Temp: 2750ºK, CRI: 80
Voltage Range: 10-20 Volts AC or DC
Power: 2.5 Watts, Volt Amps 3.0
Lumen output-fixture: 114 lm
Listing: All CAST Lights conform to: UL Std's 1838 & 8750; CE; Certified to CAN/CSA Std's C22.2 No. 250.0 & C22.2 No. 250.13. Suitable for wet locations. FCC Class B Conducted and Radiated. RoHS.

Construction:

Hat and Stake: Solid Sand-Cast Bronze
Stem: Heavy gauge copper pipe
5' tin-coated #18-2 No-Ox® marine-grade wire
