CAST Classic MR-16 Bullet Light

CBL1CB

Description

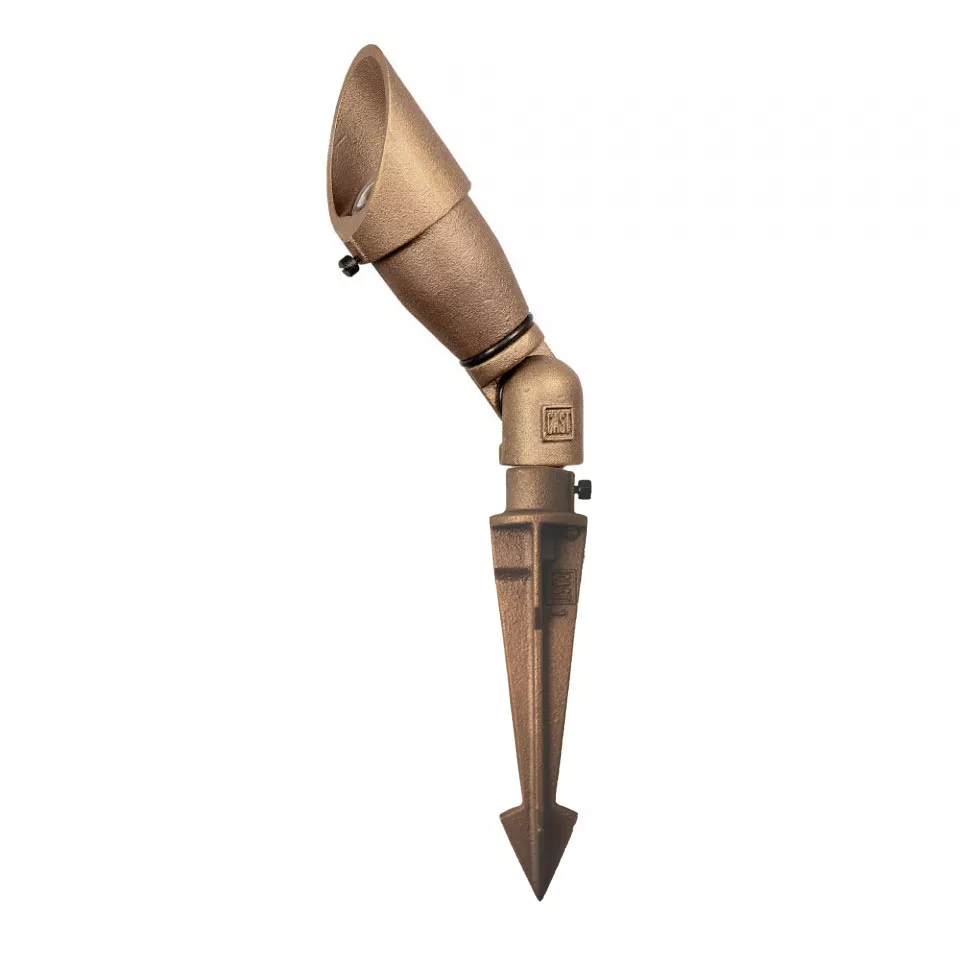

This rugged solid sand-cast bronze, LED drop-in, MR-16 fixture is known as the workhorse of landscape lighting. It is virtually indestructible, weathers to a beautiful patina and survives the harshest of environmental conditions.

Applications

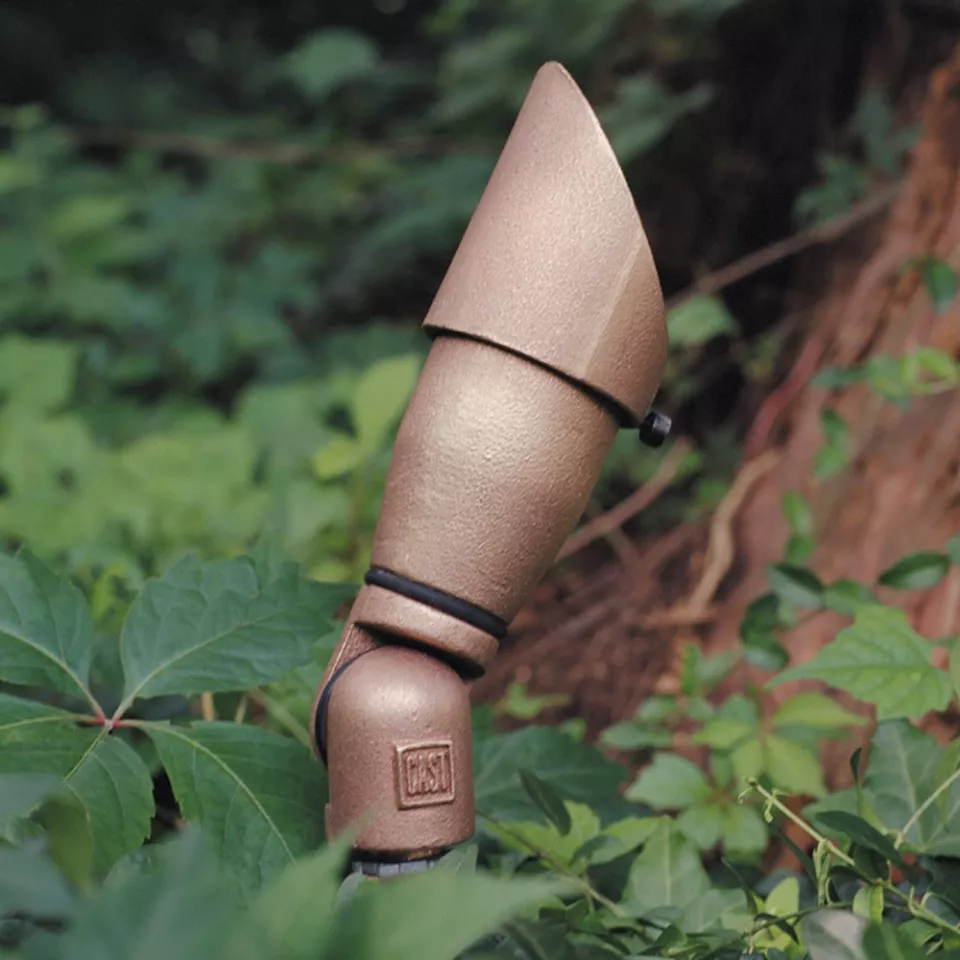

Suitable for uplighting plant material, structures, and architectural features. A wide range of lamp wattages and beam angles; as well as optional lenses and louvers provide for maximum lighting design flexibility.

Features

  • Solid bronze shroud and body
  • Solid bronze stake
  • Extra-long shroud for glare control
  • Knuckle adjusts to any angle
  • Convex lens to prevent mineral build-up
  • Pre-wired with 25’ #16/2 tin-coated No-Ox® marine grade wire
  • High-temp socket with solid nickel contacts
  • Includes heat shield to protect socket
  • Spider Splice® ready
  • LED Retrofit for installed bullets. For new installation use CBLED141
Models
  • CBL1CB
Quick Info
  • CAST Lighting magnetic toroidal core Transformers
    Both Journey Men 75, 150, 300, 600, & 900 Watt and Master Series 900 & 1200 Watt
  • CAST No-OX Tin-Coated Marine-Grade Wire
    Available in #8/2, #10/2, #12/2, #14/2, & #16/2 gauges.
  • Astronomical Digital & Mechanical Timers
  • Photo Cells
  • Seamless non-insulated crimp connections & Heat shrink for wire connections

Specifications

  • Dimensions and Weight: Knuckle and Body: 10" x 2.5" fully extended
    • Stake: 8.5"
    • Weight: 5 lbs.
  • Lamp Specifications: Lamp: 12V MR-16 (50W max.)Lamp not included or MR-16 LED Lamp.
  • Listing: All CAST Lights conform to: UL Std's 1838 & 8750; CE; Certified to CAN/CSA Std's C22.2 No. 250.0 & C22.2 No. 250.13. Suitable for wet locations. FCC Class B Conducted and Radiated. RoHS.
  • Construction:
    • Body: Solid Sand-Cast Bronze
    • Knuckle: Solid Sand-Cast Bronze, Continuously adjustable, secured with 303 stainless steel Philips Head screw.
    • Shroud: Solid Sand-Cast Bronze
    • Locking Ring: Solid brass
    • Stake: Solid Sand-Cast Bronze
    • O-Rings: Silicone Rubber
    • Lens: Covex borosilicate glass
    • Socket Assembly: High-temperature ceramic socket with solid nickel contacts (to mate with solid nickel MR-16 pins), 316 stainless steel internal contact spring, 304 stainless steel lamp spring. Aluminum heat reflector
    • Wiring: Tin-coated No-Ox marine-grade wiring (inside fixture and external 25 ft. #16/2 lead); socket wire crimped and soldered to lead wire using tin solder and tin crimps protected with waterproof shrink tubing and fiberglass sleeve.
  • Packaging:
    • Packed 6/box; fully assembled.
