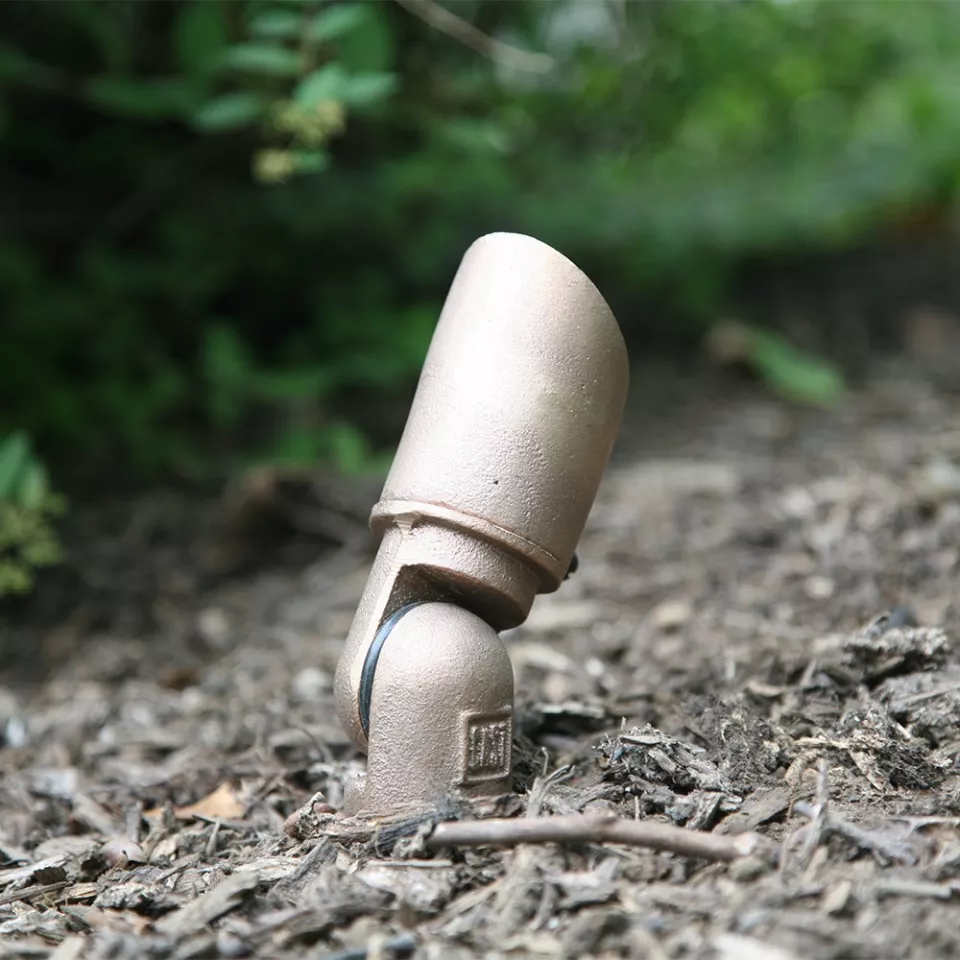

CAST Craftsman Series Bronze Spot/Wash Light

CCSL10536B, CCSL18336B, CCSL18354B, CCSL25036B, CCSL25054B, CCW105B, CCW270B

Description

These compact solid bronze directional lights and wash light feature fully integrated and sealed LED's. Choose from (5) directional models with high-quality fixed optics with a selection of lumen levels and (2) wash lights. These directional lights have fewer advanced features than Impressionist and Classic fixtures (so have a lower price point), but share the high levels of durability and performance that define 'CAST Quality.'

Applications

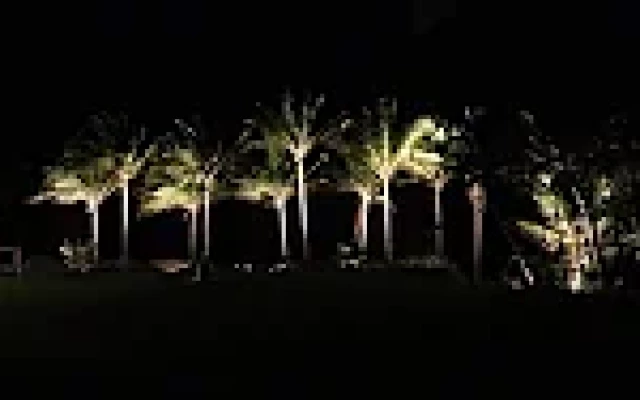

Small compact fixtures great for uplighting/wash lighting landscapes, shrubs, trees, and architectural features.

Features

Seven High Quality Options

  • (CCSL10536B) Bronze Spot Light - 36° Beam Angle, 105 Lm (15 watt halogen equivalent)
  • (CCSL18336B) Bronze Spot Light - 36° Beam Angle, 183 Lm (25 watt halogen equivalent)
  • (CCSL18354B) Bronze Spot Light - 54° Beam Angle, 183 Lm (25 watt halogen equivalent)
  • (CCSL25036B) Bronze Spot Light - 36° Beam Angle, 250 Lm (35 watt halogen equivalent)
  • (CCSL25054B) Bronze Spot Light - 54° Beam Spread, 250 Lm (35 watt halogen equivalent)
  • (CCW105B) Bronze Wash Light - 80° Beam Angle, 49 Lumen (10 watt halogen equivalent)
  • (CCW270B) Bronze Wash Light - 80° Beam Angle, 270 Lm (20 watt halogen equivalent)

Durability

  • CAST Solid bronze for unmatched corrosion resistance
  • Unbreakable bodies, hats, stems, and stake
  • No coatings to peel, flake, chip, or fade.
  • No threads that weaken stems
  • Marine-Grade Tin-Coated No-Ox Wire for lifetime electrical conductivity

Performance

  • LED components integrated into fixture bodies to draw heat away from the LED's for maximum longevity and performance
  • Premium-quality LEDs deliver consistent color temperature and accurate color rendering.
  • Superior lenses and optical elements for exceptional beam quality.
  • Electronics protected from electrical spikes and surges
  • Electromagnetic radiation (EMI) filtered to prevent interference with wireless devices.
Models
  • 36º Beam Angle, 105 Lm (15 watt halogen equivalent) (CCSL10536B)
  • 36º Beam Angle, 183 Lm (25W Halogen Equivalent) (CCSL18336B)
  • 54º Beam Angle, 183 Lm (25W Halogen Equivalent) (CCSL18354B)
  • 36º Beam Angle, 250 Lm (35W Halogen Equivalent) (CCSL25036B)
  • 54º Beam Spread, 250 Lm (35W Halogen Equivalent) (CCSL25054B)
  • 80º Beam Angle, 49 Lumen (10W Halogen Equivalent) (CCW105B)
  • 80º Beam Angle, 270 Lm (20W Halogen Equivalent) (CCW270B)
Quick Info
  • Craftsman Series Light Engine Modules (Click Here!)
  • CAST Lighting magnetic toroidal core Transformers: Journeymen 75, 150, 300, 600, & 900 Watt and Master Series 900 & 1200 Watt
  • CAST No-OX Tin-Coated Marine-Grade Wire Available in #8/2, #10/2, #12/2, #14/2, & #16/2 gauges.
  • Astronomical Digital & Mechanical Timers
  • Photo Cells
  • Seamless non-insulated crimp connections & Heat shrink for wire connections

Specifications

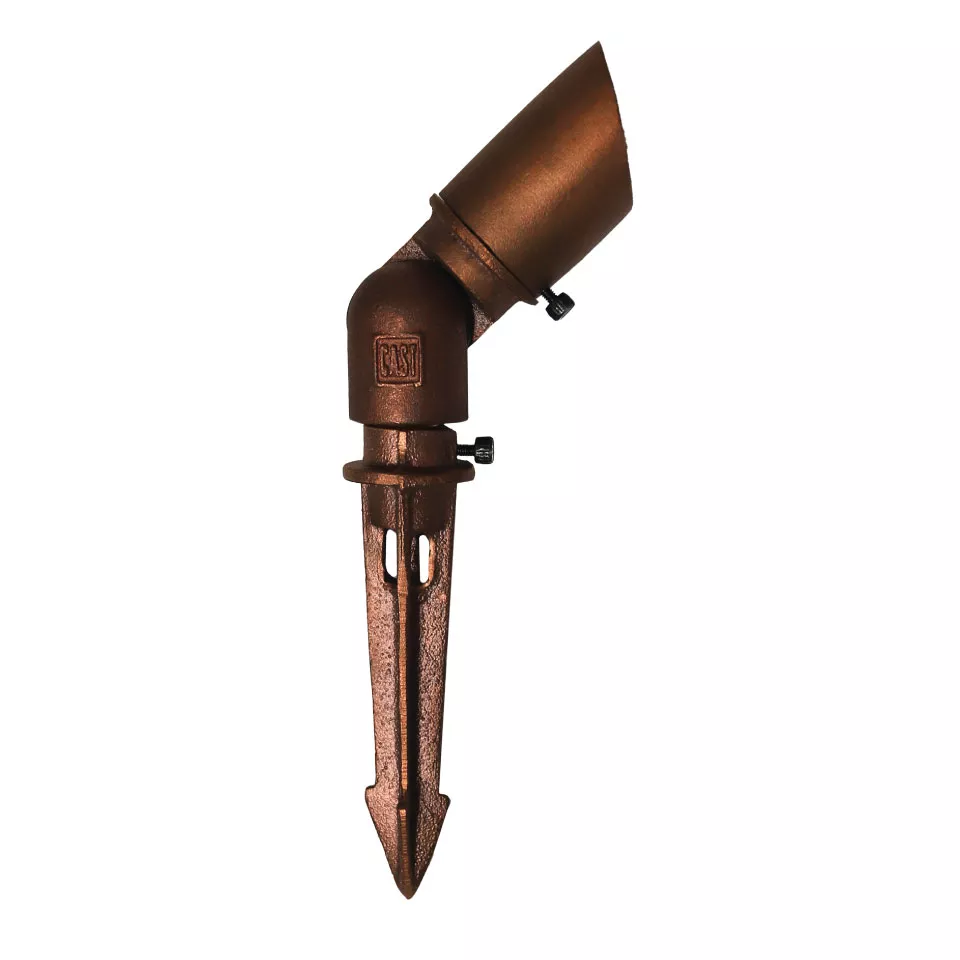

Dimensions:

  • Body: 4.5”
  • Stake: 6.5”
  • Knuckle: 2.5”

Construction:

  • Solid sand cast bronze body and base
  • Solid sand cast bronze stake
  • 5’ tin-coated #18-2 No-Ox® marine-grade wire.

LED Specifications:

CCSL10536B (15 watt halogen equivalent)

    • LED Light Source: 1 Cree LED’s, Life(L70) 51,400 hrs. Color Temp: 2736°K CRI: 81
    • Input voltage: 10 to 24V, AC or DC
    • Power: 2.8 watts, .26 amps, Power Factor: .89 Volt Amps: 3.15
    • Lumen output-fixture: 89 lm
    • Center Beam Candela: 358
    • FCC compliant for EMI interference

CCSL18336B (25 watt halogen equivalent)

    • LED Light Source: 1 Cree LED’s, Life(L70) 51,400 hrs. Color Temp: 2794°K CRI: 80
    • Input voltage: 10 to 24V, AC or DC
    • Power: 2.69 watts, .25 amps, Power Factor: .88 Volt Amps: 3.06
    • Lumen output-fixture: 153 lm
    • Center Beam Candela: 417
    • FCC compliant for EMI interference

CCSL18354B (25 watt halogen equivalent)

    • LED Light Source: 1 Cree LED’s, Life(L70) 51,400 hrs. Color Temp: 2885°K CRI: 79
    • Input voltage: 10 to 24V, AC or DC
    • Power: 2.68 watts, .26 amps, Power Factor: .87 Volt Amps: 3.08
    • Lumen output-fixture: 153 lm
    • Center Beam Candela: 238
    • FCC compliant for EMI interference

CCSL25036B (35 watt halogen equivalent)

    • LED Light Source: 1 Cree LED’s, Life(L70) 51,400 hrs. Color Temp: 2816°K CRI: 79
    • Input voltage: 10 to 24V, AC or DC
    • Power: 4.3 watts, .42 amps, Power Factor: .82 Volt Amps: 5.24
    • Lumen output-fixture: 229 lm
    • Center Beam Candela: 665
    • FCC compliant for EMI interference

CCSL25054B (35 watt halogen equivalent)

    • LED Light Source: 1 Cree LED’s, Life(L70) 51,400 hrs. Color Temp: 2816°K CRI: 79
    • Input voltage: 10 to 24V, AC or DC
    • Power: 4.3 watts, .42 amps, Power Factor: .82 Volt Amps: 5.24
    • Lumen output-fixture: 229 lm
    • Center Beam Candela: 665
    • FCC compliant for EMI interference

CCW270B (35 watt halogen equivalent)

    • LED Light Source: 2 Cree LED’s, Life(L70) 60,500 hrs. Color Temp: 2758°K CRI: 82
    • Input voltage: 10 to 24V, AC or DC
    • Power: 2.82 watts, .4 amps, Power Factor: .9 Volt Amps: 3.2
    • Lumen output-fixture: 49 lm
    • Center Beam Candela: 94
    • FCC compliant for EMI interference

CCW105B (10 watt halogen equivalent)

    • LED Light Source: 1 Cree LED, Life(L70) 60,500 hrs. Color Temp: 2787°K CRI: 82
    • Input voltage: 10 to 24V, AC or DC
    • Power: 2.82 watts, .27 amps, Power Factor: .88 Volt Amps: 4.81
    • Lumen output-fixture: 49 lm
    • Center Beam Candela: 29
    • FCC compliant for EMI interference

Listings:

  • Emmision Standards: FCC Class A conducted and radiated
  • UL 8750 recognized; CSA C22.2 No. 250.0-08 Canadian National Standard for Luminaires
  • RoHS

Packaging: 6/case
